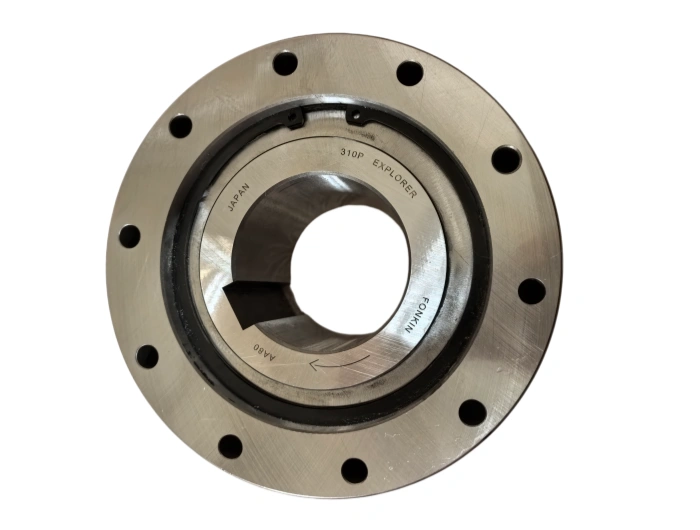

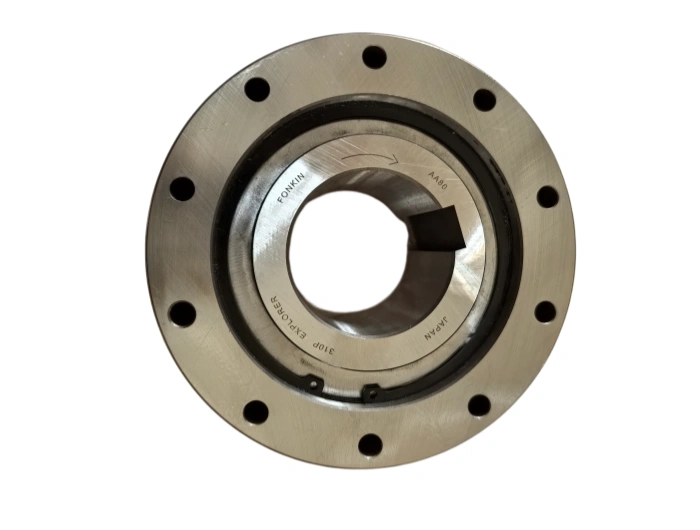

Cylindrical Roller Bearing AA80 FONKIN

The FONKIN AA80 is a premium heavy-duty one-way freewheel clutch bearing, purpose-built for high-torque transmission, equipment backstopping and smooth overrunning operations in harsh, high-load industrial working conditions. Featuring optimized torque density and ultra-high radial structural stiffness, this industrial one-way sprag clutch bearing delivers precise unidirectional motion control, stable running performance and reliable reverse rotation prevention for heavy industrial drive systems.

1. Dimensional Parameters & Precision Tolerances

Manufactured fully compliant with global ISO and DIN industrial bearing standards, the FONKIN AA80 one-way clutch bearing adopts reinforced integrated structural geometry to realize uniform load distribution and shock resistance:

•         Bore Diameter (d): 80 mm

•         Outside Diameter (D): 210 mm

•         Total Mounting Width (B): 100 mm

•         Unit Net Weight: 15.6 kg per piece

•         Minimum Chamfer Dimension (r): 3.0 mm

•         Precision Tolerance Class: ISO P6 / P5 Grade (Equivalent to ABEC-3 / ABEC-5) for ultra-superior rotational positioning accuracy

•         Radial Internal Clearance: CN Standard Normal Clearance, customized for thermal expansion balance under continuous high-temperature operation

2. Premium Material Specification & Professional Metallurgy

Adopts vacuum-degassed high-purity alloy bearing raw materials to resist extreme torsional stress, impact load and long-term contact fatigue in heavy-duty service:

•         Inner & Outer Rings: Modified high-carbon chromium bearing steel GCr15SiMn (Upgraded SAE 52100 alloy steel), integral through-hardened to 61–65 HRC. The optimized alloy formula enhances core material toughness, anti-deformation capacity and extreme wear resistance under frequent heavy shock loads.

•         Sprags & Rolling Elements: Precision CNC ground GCr15 steel components with professional surface nitriding treatment, boosting surface hardness, lowering overrunning friction coefficient and reducing component abrasion.

•         Cage/Retainer: Heavy-duty solid machined tensile brass cage (H62 / H65 grade), characterized by low friction coefficient, excellent vibration damping performance and stable structural rigidity under sustained elevated operating temperatures.

3. Core Manufacturing & Precision Processing Technology

FONKIN AA80 heavy-duty freewheel clutch bearing adopts top-tier metallurgical engineering and full-link precision machining craftsmanship to achieve zero-defect finished products:

•         Precision Forging & CNC Turning: Multi-directional constant-temperature hot forging optimizes internal steel grain flow, eliminates metallurgical defects and residual stress; high-precision CNC turning realizes consistent blank dimensional accuracy.

•         Martensitic Controlled Heat Treatment: Sealed atmosphere quenching plus three-stage segmented tempering completes internal metal microstructure transformation, ensuring permanent dimensional stability and strong fracture toughness.

•         Raceway Grinding & Ultra-Precision Superfinishing: Dual-process raceway grinding + CNC mirror superfinishing achieves ultra-low surface roughness Ra ≤ 0.05μm, cutting startup running friction and suppressing operational heat generation effectively.

4. Rated Service Life & Industrial Durability Criteria

Nominal service life and load parameters are calculated and tested strictly per ISO 281 & DIN 732 international clutch bearing standards, based on rated dynamic load and standard overrunning velocity:

•         Catalog Standard Expected Service Life: Over 25,000 continuous operational hours under rated load, rated speed and standard lubrication working conditions

•         Key Lifecycle Influence Factors: Actual service life is dominated by shaft mounting alignment precision, external dust/contamination sealing performance, and continuous integrity of lubricating oil film

5. Industrial Applications & Global Market Adaptability

Equipped with self-contained reinforced roller-sprag clutch structure, the FONKIN AA80 heavy-duty one-way bearing fits high-load industrial scenarios perfectly, widely deployed in global core heavy industries:

•         Mining & Bulk Material Handling: Core backstop clutch for inclined belt conveyors and bucket elevators, preventing sudden equipment rollback and production safety accidents

•         Heavy-Duty Gear Reducers & Industrial Gearboxes: Overrunning clutch component for multi-power drive systems to realize uniform, seamless torque distribution

•         Wind Power & Renewable Energy Industry: Torque limiting assembly and safety backstop parts for wind power generator transmission systems

6. Routine Maintenance & Standard Lubrication Protocols

•         Lubrication Interval: Scheduled re-lubrication every 3,000–4,500 operating hours; shorten maintenance cycle for high-temperature, high-dust corrosive workshops

•         Recommended Lubrication Medium: Premium lithium-complex grease with EP extreme pressure additives, or ISO VG 100 / VG 150 industrial extreme pressure gear oil

•         Grease Filling Volume: 35%–50% of bearing internal free cavity; prohibit over-greasing to avoid hydrodynamic overheating and clutch jamming failure

•         Daily Inspection & Cleaning Standard: Regularly check running noise, operating temperature and oil seal tightness; flush bearing housing fully with industrial mineral solvents before new grease refilling

7. Precision Installation Specifications & Operational Safety Guidelines

•         Pre-Assembly Preparation: Retain original VCI anti-rust vacuum packaging before formal assembly to avoid particle contamination; calibrate mating shaft and housing bore tolerance to match standard transition or interference fit requirements.

•         Standard Mounting Procedure: Adopt professional induction heating shrink fitting method; limit maximum heating temperature ≤ 110°C; strictly forbid direct hammer striking or impact on inner ring and outer ring.

•         Alignment & Bolt Fastening: Control shaft total angular misalignment within 0.02 mm maximum; fasten locking bolts evenly via star sequence with calibrated industrial torque wrench.

•         Post-Installation Performance Validation: Complete manual rotation test before equipment power-on; verify instant locking effect in driving direction and low-resistance smooth overrunning in freewheeling direction.
