Cylindrical Roller Bearing AA60 FONKIN

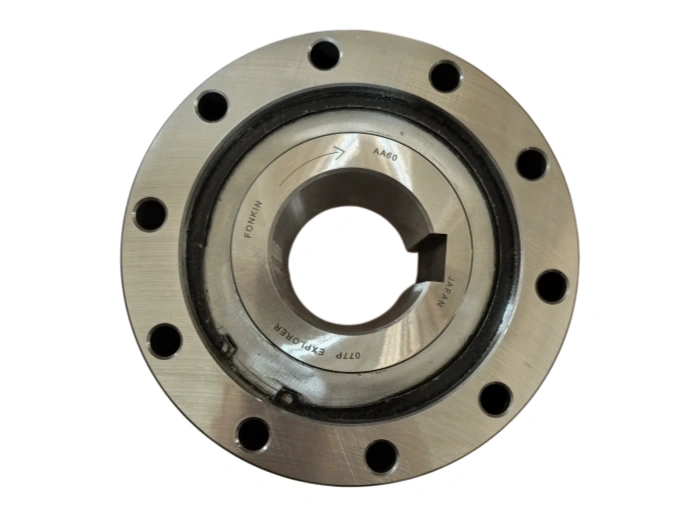

The FONKIN AA60 is an industrial heavy-duty one-way sprag freewheel clutch roller bearing, specially optimized for unidirectional overrunning, torque transmission and shaft backstopping operations. Manufactured per ISO international precision bearing standards, this FONKIN one-way roller bearing delivers superior structural stability, high torque resistance and long-cycle durability under heavy-load, high-dust and continuous-duty industrial working conditions, serving as a core mechanical transmission component for global industrial drive systems.

1. Dimensional Parameters & Standard Tolerances

This FONKIN AA60 60x170x78mm one-way clutch bearing adopts international standard mounting dimensional series, with calibrated geometric structure to bear combined radial load and peak torsional load:

•         Bore Diameter (d): 60 mm

•         Outside Diameter (D): 170 mm

•         Total Mounting Width (B): 78 mm

•         Minimum Chamfer Dimension (r): 2.1 mm

•         Precision Tolerance Grade: ISO P6 / P5 Grade (Equivalent to ABEC-3 / ABEC-5), ultra-high rotary positioning accuracy

•         Radial Internal Clearance: Standard CN Normal Clearance Class

2. Premium Material Composition & Mechanical Properties

All load-bearing components adopt high-purity smelted bearing raw materials to improve contact fatigue resistance and heavy-load wear resistance for long-term industrial service:

•         Inner Ring & Outer Ring: High-carbon chromium bearing steel GCr15 (Equivalent SAE 52100), integral through-hardened with 60–64 HRC hardness, anti-deformation, high compressive strength and moderate temperature resistance

•         Rolling Elements & Sprag Clutch Parts: Precision superfinished GCr15 steel rollers, optimized contact surface to reduce clutch friction loss and avoid surface peeling

•         Bearing Cage: Optional H62 Machined Brass Cage / Reinforced Stamped Carbon Steel Cage; brass cage features excellent vibration damping, corrosion resistance and high-temperature stability; steel cage owns ultra-high impact resistance for heavy shock working scenarios

3. Core Manufacturing & Precision Processing Technology

Adopt European standard bearing integrated production technology, full-process quality inspection to realize zero-defect freewheel clutch bearing finished products:

•         Precision Forging & CNC Turning: Directional hot forging optimizes metal grain flow, eliminates internal residual stress; CNC turning realizes blank dimensional consistency

•         Constant-Temperature Heat Treatment: Martensitic quenching + segmented low-temperature tempering treatment, stable overall hardness and permanent dimensional stability after long-term operation

•         Raceway Grinding & Ultra-Precision Superfinishing: Raceway and roller double-sided superfinishing, surface roughness Ra ≤ 0.08μm, effectively lowering running friction, heat generation and clutch wear rate

4. Rated Service Life & Key Influence Factors

Nominal service life tested and calculated strictly in accordance with ISO 281 international bearing life evaluation standard, matching industrial heavy-duty use benchmark:

•         Basic Dynamic Load Rating (C): Matched with AA60 clutch structural load limit

•         Basic Static Load Rating (C₀): High anti-overload static bearing capacity for sudden torque impact

•         Standard Working Life: Over 20,000 continuous operational hours under rated load, rated speed and standard lubrication environment

Core service life influencing factors: Shaft mounting coaxiality, EP lubrication status, operating ambient temperature and external dust contamination.

5. Industrial Application Scenarios & Adaptive Industries

As a mainstream 60x170x78mm one-way freewheel clutch bearing, FONKIN AA60 is widely applied in global heavy industrial transmission equipment, applied for anti-reverse backstop and one-way overrunning drive:

Industrial gear reducers, belt conveyor backstop systems, mining machinery, construction winch & hoist equipment, agricultural transmission machinery, commercial automotive auxiliary transmission, automated packaging industrial machinery and general industrial power drive assemblies. Its built-in sprag clutch structure perfectly solves equipment reverse rotation and load backflow risks for heavy machinery.

6. Routine Maintenance & Standard Lubrication Protocols

Standardized industrial maintenance rules for FONKIN AA60 one-way clutch bearing to extend overall service cycle:

•         Lubrication Replacement Cycle: Re-grease every 3,000–5,000 operating hours, shorten cycle for high-temperature & dusty workshops

•         Recommended Lubricant: Industrial EP2 extreme pressure oil, lithium complex high-temperature bearing grease

•         Grease Filling Volume: 30%–50% of internal bearing cavity space to avoid overheating and clutch jamming

•         Daily Inspection & Cleaning: Regularly check running noise, vibration value and oil leakage; clean bearing housing with industrial mineral spirits before lubricant replacement

7. Precision Installation Specifications & Operation Safety Guidelines

•         Pre-Install Preparation: Keep original vacuum packaging intact before assembly to prevent particle pollution; inspect mating shaft and housing tolerance to confirm interference/transition fit

•         Standard Assembly Process: Adopt professional press-fit tools or low-frequency induction heating; maximum heating temperature ≤120°C; forbidden direct hammer striking on bearing rings

•         Mounting Accuracy Requirement: Total shaft radial misalignment ≤ 0.03mm; fasten locking bolts via calibrated torque wrench with graded torque control

•         Post-Install Detection: Conduct manual rotation test, verify one-way locking function and smooth freewheeling performance; isolate bearing from corrosive medium during installation
