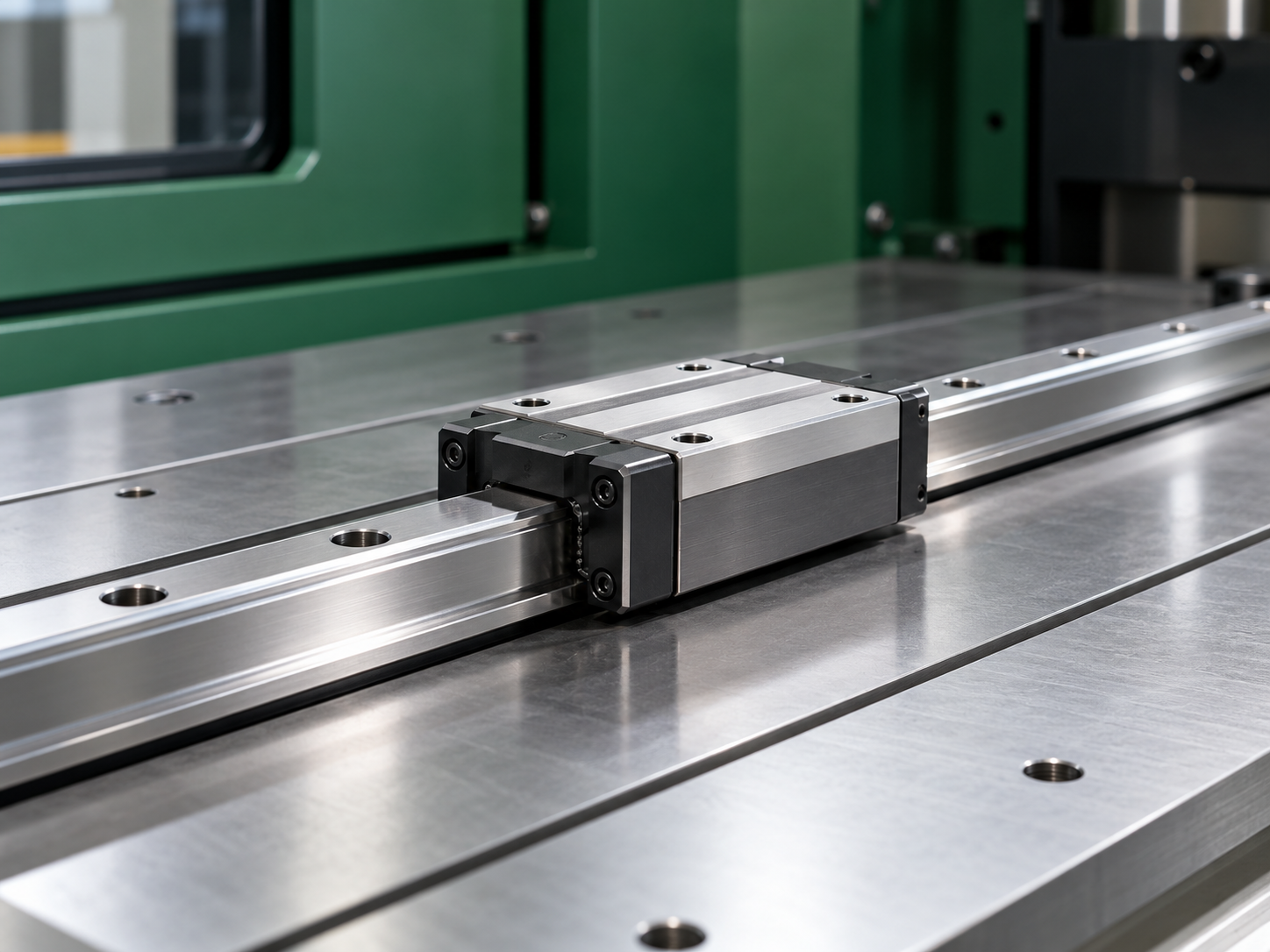

THK HSR25A1SS Linear Guide Block: Buyer’s Checklist for Sourcing and Replacement

THK HSR25A1SS Linear Guide Block: What Buyers Should Confirm Before Ordering

A replacement request for a THK HSR25A1SS linear guide block often looks straightforward until the old component is removed. The block marking is important, but it is only one part of the identification. Rail compatibility, block quantity, seal condition and the reason for failure should be checked before the order is finalized.

FONKIN helps industrial buyers organize these details before quotation. This avoids a familiar problem: a part arrives with a similar size but does not match the existing rail or running condition.

Start with the complete marking

Send a clear photo of the complete marking on the block and, where available, the rail. Do not select a guide block by dimensions alone. Linear guide systems are matched assemblies, and the rail profile, mounting arrangement and running condition matter.

• Full block marking and rail marking

• Number of blocks required per rail

• Rail length and installation photos

• Seal condition and signs of contamination

• Machine application, load direction and working environment

• Destination country and delivery requirement

Check the rail before replacing the block only

A new block cannot correct a rail that is scratched, corroded, dented or worn. Inspect the rail for rough travel, pitting, impact marks near mounting holes and visible corrosion. If the rail model cannot be confirmed or the rail shows damage, a matched rail-and-block quotation should be considered.

For machines operating around coolant, chips, dust or high duty cycles, also examine lubrication and protection. Repeated contamination or insufficient lubrication can shorten the service life of a replacement block.

Prepare a quotation request that can be checked properly

1. State the full THK HSR25A1SS marking or send the original purchasing reference.

2. Confirm whether the request is for one block, multiple blocks or a complete rail-and-block set.

3. Provide rail model and rail length if known.

4. Send clear photos of the old block, rail and mounting position.

5. Describe the machine and the reason for replacement.

6. Include quantity, destination country and required arrival date.

When the marking is incomplete, photos and rail information are more useful than a size estimate. They allow the supplier to review the request before a buyer commits to an unsuitable option.

Installation checks after delivery

Before installation, clean the rail seat and mounting surfaces, remove chips and inspect the rail. Confirm that the block runs smoothly over the full working stroke before the machine returns to service. Follow the machine manufacturer’s installation and lubrication instructions.

Request support from FONKIN

For a THK HSR25A1SS inquiry, send the complete marking, rail details, photos, quantity, application and destination country. FONKIN can organize the identification details before quotation so that the request is clear and practical for purchasing.

Frequently asked questions

Can a linear guide block be replaced using dimensions only?

No. Confirm the complete marking and rail compatibility first.

When should the rail be included in the quotation?

Include the rail when it is damaged, cannot be identified, or when a machine rebuild requires a matched assembly.

What helps make the RFQ faster?

Complete marking, rail information, photos, quantity, application and destination country.
