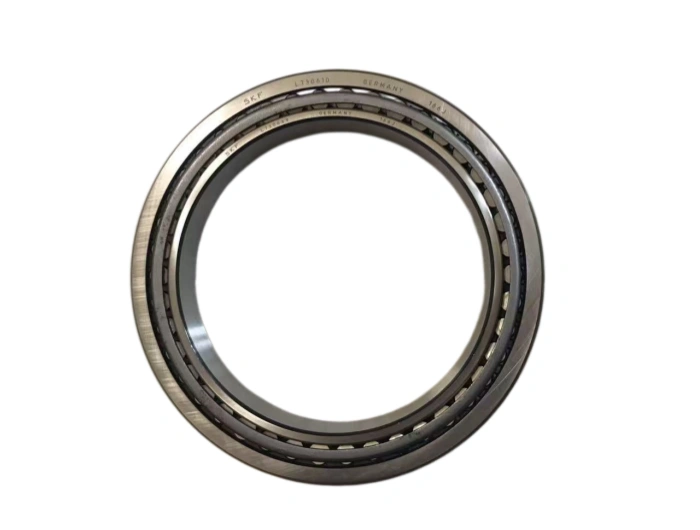

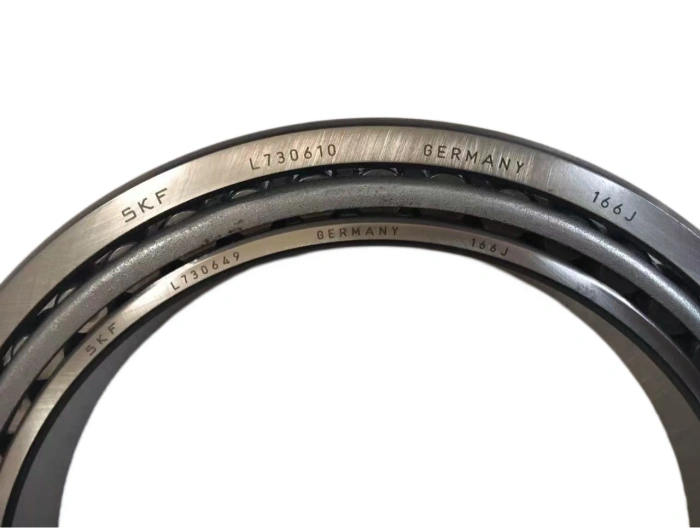

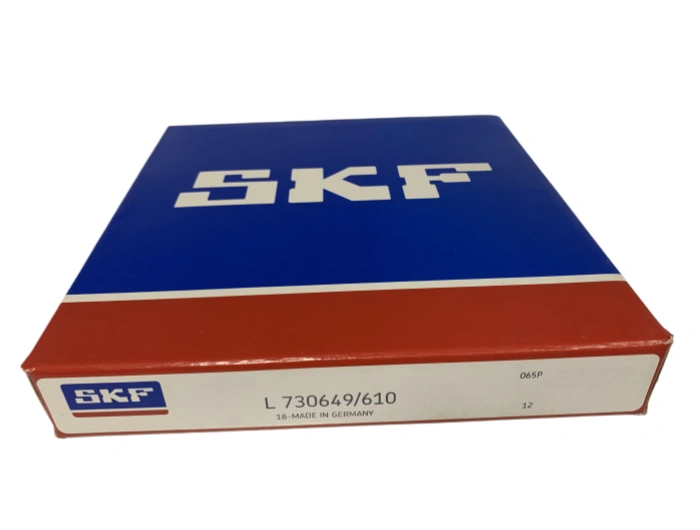

Tapered Roller Bearings L 730649/610 SKF

The SKF L730649/610 is a high-precision single-row tapered roller bearing, a core component for industrial transmission systems. As a premium SKF bearing product, it integrates excellent load-bearing capacity, stable rotation performance and long service life, widely applied in heavy-duty machinery, automotive and industrial manufacturing fields. This technical introduction details its key parameters, materials, processing technology, maintenance and installation guidelines, complying with international bearing industry standards.

1. Dimensional Parameters (Precision Standard): As a standard imperial-sized tapered roller bearing, the SKF L730649/610 features accurate dimensions compliant with ISO 492 standard. Bore diameter (d): 6 in (152.400 mm), cup outer diameter (D): 8 in (203.2 mm), cone width (B): 1.1250 in (28.575 mm), cup width (C): 0.8440 in (21.438 mm), overall bearing width (T): 1.1250 in (28.575 mm). Chamfer radius: cone and cup backface clearance radius 0.13 in (3.3 mm). Tolerance class: P6 grade for both inner ring (cone, part No. L730649) and outer ring (cup, part No. L730610), ensuring high assembly precision for industrial machinery.

2. Material Specification: The inner ring, outer ring and rolling elements of the SKF L730649/610 tapered roller bearing are made of 100Cr6 high-carbon chromium bearing steel, a premium material widely used in high-performance industrial bearings. The cage is made of high-quality stamped steel. After professional heat treatment, 100Cr6 steel achieves a hardness of 60-64 HRC, with excellent wear resistance, fatigue resistance and dimensional stability, effectively extending the bearing’s service life. The stamped steel cage ensures high rigidity, reliable separation of rolling elements and stable operation even under heavy loads.

3. Core Processing Technology: The SKF L730649/610 is manufactured through advanced precision processing technologies, including closed die forging, CNC turning, controlled atmosphere heat treatment, CBN grinding and superfinishing—key processes for high-quality tapered roller bearings. Closed die forging ensures a dense internal structure; CNC turning controls surface roughness Ra ≤ 0.4μm; controlled atmosphere heat treatment achieves uniform hardness distribution; CBN grinding guarantees dimensional accuracy within μm level; superfinishing reduces rolling surface roughness to Ra ≤ 0.05μm, reducing friction and noise, and enhancing the bearing’s overall performance.

4. Service Life: Under standard working conditions (constant speed, rated load, clean environment), the expected L₁₀ service life of the SKF L730649/610 bearing is 20,000 operating hours, calculated in accordance with ISO 281 (international standard for bearing life calculation). Key factors affecting service life include lubrication quality, contamination level, installation accuracy and operating load deviation—critical points for extending the service life of industrial bearings.

5. Application Scenarios & Industries: The SKF L730649/610 tapered roller bearing is widely used in core industries such as automotive drive axles, construction machinery, machine tool spindles, gear reduction units, port equipment and thermal power coal transporters. It is especially suitable for heavy-duty, moderate-speed industrial applications that require bearing both radial and axial loads. Its excellent stability under harsh working conditions and low operating friction make it an ideal choice for industrial transmission systems, aligning with the 2026 industrial bearing application trends.

6. Basic Maintenance Requirements: For optimal performance of the SKF L730649/610 bearing, regular maintenance is essential. Maintenance cycle: 2,000 operating hours. Recommended lubricant: SKF lithium-based grease (suitable for industrial bearings), filling amount 10%-30% of the bearing’s free space. Cleaning standard: Remove rust-proof oil and contaminants with clean gasoline before lubrication. Regular inspection items: vibration, temperature and lubricant state; abnormal handling: Stop operation immediately if overheating or abnormal noise occurs, check for wear or misalignment to avoid further damage.

7. Installation Notes: Correct installation is crucial for the SKF L730649/610 bearing’s performance. Pre-installation: Clean the shaft and bearing seat thoroughly, check for burrs. Installation process: Apply uniform force on the inner ring for interference fit, use a torque wrench to tighten fasteners in a star pattern. Alignment requirement: Misalignment ≤ 0.5°. Fastening torque: 80-100 N·m (refer to SKF official standards). Post-installation inspection: Rotate flexibly without jamming, detect vibration and temperature. Safety protection: Wear protective gloves, avoid direct impact on bearing components to prevent damage.

8. Featured English Description: The SKF L730649/610 is a high-performance single-row tapered roller bearing (imperial size), integrating 100Cr6 high-purity bearing steel and SKF’s advanced precision processing technology. As a reliable industrial bearing solution, it excels in bearing combined radial and axial loads, with stable operation, long service life and easy maintenance. Specifically designed for industrial transmission and heavy-duty equipment, it provides reliable rotation support for gear systems, machine tools and construction machinery, highlighting SKF’s leading technology in high-precision bearing manufacturing and meeting the strict requirements of modern industrial applications.
