Deep Groove Ball Bearings 6206-TB-P63 FAG

The FAG 6008-TB-P63 is a high-precision single-row deep groove ball bearing engineered for high-speed operation, low noise output and enhanced running accuracy. As a reliable FAG precision ball bearing, this 6008-TB-P63 model features P63 upgraded tolerance class, TB high-temperature resistant cage and optimized internal structure, delivering stable performance for precision machinery and high-demand transmission systems.

Industry Expertise
Global Reach
OEM/ODM Services

Get a Free Quote +86-510-6831-3099 fonkin-industries@188.com 8618751551686

Product Introduction
Detailed Parameters
Message Us

The FAG 6206-TB-P63 is a high-precision, heat-resistant single-row deep groove ball bearing optimized for high-speed rotation and demanding industrial operating conditions. As a high-grade FAG precision ball bearing, this 6206-TB-P63 unit features P63 precision tolerance and TB high-temperature phenolic resin cage, delivering outstanding dimensional accuracy, low vibration and long-cycle stability for general machinery and power transmission systems.
Manufactured in compliance with DIN and ISO industrial standards, its standardized dimensional data is highly accurate: inner bore 30 mm, outer diameter 62 mm, overall width 16 mm, minimum mounting chamfer 0.6 mm, and upgraded P63 precision tolerance class for tighter runout and fit accuracy.
Inner rings, outer rings and steel balls are produced from premium 100Cr6 high-carbon chromium bearing steel, with surface hardness stabilized at HRC 60–64, providing excellent wear resistance, contact fatigue strength and structural rigidity. The TB-type thermostable phenolic resin cage offers high-temperature resistance, low friction coefficient and stable roller guidance, adapting to continuous high-speed and temperature-fluctuating working environments.
Core production processes include precision die forging, high-precision CNC turning, vacuum quenching and tempering heat treatment, raceway precision grinding and steel ball superfinishing. Refined processing reduces surface roughness, eliminates internal residual stress, lowers operating friction and noise, and greatly improves the comprehensive durability of the FAG 6206-TB-P63 bearing.
Bearing service life is calculated in accordance with the ISO 281 international standard. Under standard rated load and stable lubrication conditions, its L10 theoretical service life exceeds 21,000 hours. Actual service performance is mainly affected by load intensity, rotating speed, lubrication status, installation coaxiality and environmental cleanliness.
Widely applied in CNC machine tools, automotive parts, engineering machinery, fan compressor equipment, automated production lines and light industrial transmission devices, this FAG 6206 deep groove ball bearing balances high precision and cost efficiency. Its high-speed resistance and high-temperature adaptability make it the preferred choice for medium-load continuous operation scenarios.
For daily maintenance, adopt NLGI 2 high-temperature extreme pressure lithium grease, with 30%–40% cavity filling volume; complete supplementary lubrication every 500 operating hours. Keep matching surfaces clean and dry, regularly monitor operating temperature and abnormal noise, and replace components timely if wear or aging occurs.
Before installation, thoroughly clean shafts and housings and remove burrs. Adopt press-fit assembly and prohibit violent knocking. Control coaxiality deviation within 0.05 mm, follow standard fastening torque, and conduct 30 minutes of no-load trial operation after installation to confirm smooth rotation and qualified assembly.

BRAND	FONKIN/SKF/FAG/INA/NSK/NTN/TIMKEN/SNR/IKO/KOYO/ASAHI/FYH/THK/HIWIN/PMI
BEARINGS NO.	6206-TB-P63 FAG
TYPE	DEEP GROOVE BALL BEARING
Inner(d)mm	30
Outer(D)mm	62
Width(B)mm	16
WEIGHT/KG	0.18

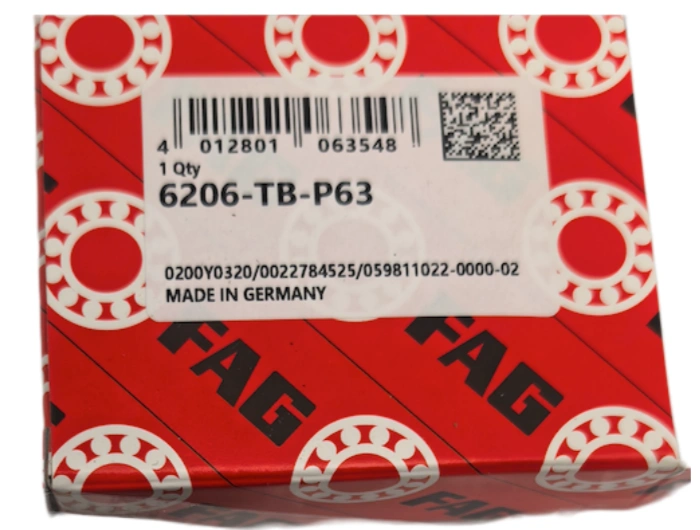

EAN CODE	4012801 063548
