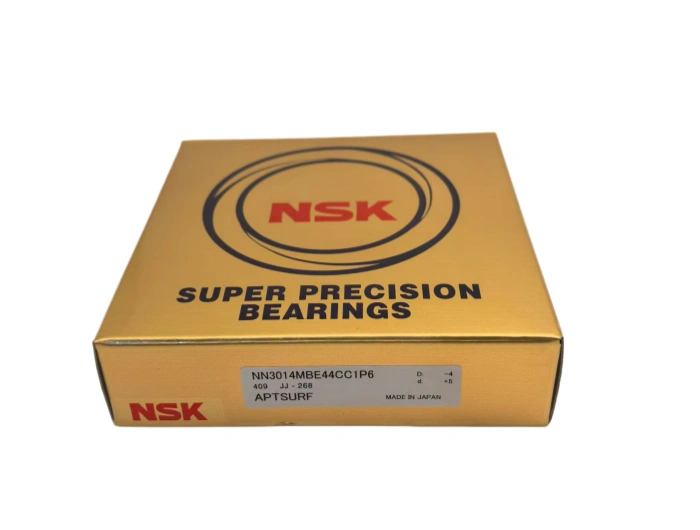

Cylindrical Roller Bearing NN3014MBE44CC1P6 NSK

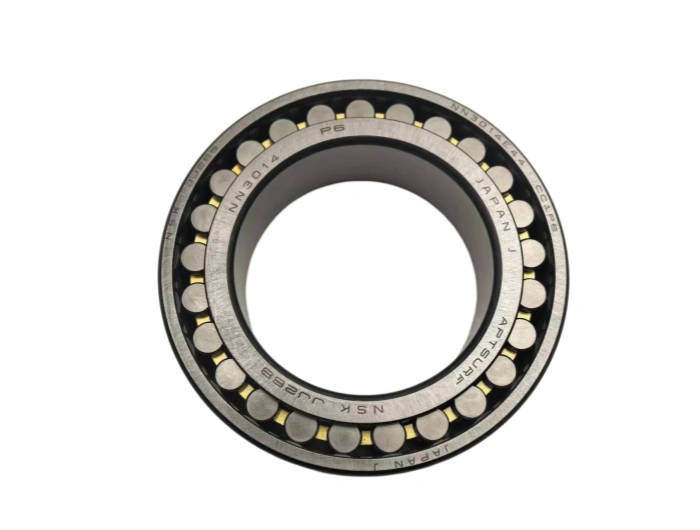

The NSK NN3014MBE44CC1P6 is a high-precision double-row cylindrical roller bearing with inner ring ribs, featuring optimized internal design, high rigidity and excellent high-speed performance. It is specifically engineered for high-precision, heavy-load industrial scenarios, fully complying with ISO and DIN bearing standards. The suffixes denote unique configurations: MBE44 for roller-guided brass cage and outer ring with standard oil grooves and oil holes, CC1 for standard radial internal clearance, and P6 for high precision grade, making it stand out in precision machinery applications.

1. Detailed Dimensional Parameters: Conforming to ISO 3268 and DIN 628 standards, the bearing has an inner diameter (d) of 70mm, outer diameter (D) of 110mm, and width (B) of 30mm. The chamfer size (rₘᵢₙ) is 1.5mm, single weight is 1.03 kg. Its tolerance grade is P6 (ISO 492), with inner/outer diameter tolerance of IT6 and width tolerance of IT7. The basic dynamic load rating is 158kN, basic static load rating is 224kN, reference speed (grease lubrication) is 6300r/min, and limiting speed (oil lubrication) is 8500r/min. It adopts a cylindrical bore, with E44 marking indicating outer ring equipped with oil grooves and oil holes for efficient lubrication.

2. Specific Material Description: Inner ring, outer ring and cylindrical rollers are made of high-carbon chromium bearing steel (AISI 52100/SUJ2), refined by vacuum degassing technology to reduce harmful impurities and improve material uniformity. After precision heat treatment, it reaches a hardness of 61-65 HRC, featuring excellent wear resistance, high fatigue strength and stable dimensional accuracy under long-term high-speed operation. The retainer (suffix MB) is made of high-strength brass, with good thermal conductivity, impact resistance and wear resistance, ensuring stable roller guidance and reducing friction at high speeds. Optional stainless steel (SUS440C) components are available for corrosive environments.

3. Core Processing Technology: Key processes include closed-die forging, CNC turning, controlled atmosphere heat treatment, precision grinding and superfinishing, strictly following NSK’s advanced manufacturing standards. Closed-die forging ensures dense internal structure and continuous metal fiber distribution, enhancing overall bearing rigidity. CNC turning achieves Ra ≤ 0.3μm surface roughness, ensuring dimensional accuracy. Heat treatment adopts nitrogen-hydrogen protective atmosphere to avoid oxidation and decarburization, ensuring uniform hardness distribution. Precision grinding with CBN砂轮 and superfinishing reduce raceway roughness to Ra ≤ 0.04μm, minimizing friction and extending service life. The outer ring oil grooves and oil holes are machined by precision drilling to ensure smooth lubricant circulation.

4. Service Life: Under standard working conditions (3000r/min, radial load 50kN, proper lubrication and clean environment), the L₁₀ basic rated life (90% reliability) is 28,000 operating hours, calculated in accordance with ISO 281:2007 standard and NSK’s unique life calculation method (NSK Able Forecaster). Key influencing factors include lubrication quality, pollution level, installation accuracy and load magnitude; insufficient lubrication or excessive contamination can reduce service life by 40-60%, while improper installation may cause premature wear or raceway damage.

5. Application Scenarios and Industries: Widely used in high-precision machinery manufacturing, machine tool, metallurgical equipment, gearbox and wind power industries. Typical applications include CNC machine tool spindles, precision grinding machine shafts, heavy-duty gearboxes, rolling mill equipment and wind turbine gearbox components. It is particularly suitable for these scenarios due to its double-row structure (high radial load capacity), P6 precision grade (high running accuracy), E44 oil hole design (efficient lubrication) and high rigidity, adapting to high-precision, heavy-load and high-speed operating conditions.

6. Basic Maintenance Requirements: Maintenance cycle is 2000 operating hours. Lubrication: Lithium-based grease (NLGI 2) or extreme pressure gear oil (ISO VG 68), filling amount 15-30% of bearing free space; re-lubricate every 1500-2000 hours, and ensure lubricant fully fills the oil grooves and oil holes. Cleaning: Clean surface and oil holes with clean kerosene to remove dust and old grease, avoid corrosive cleaners, and dry thoroughly. Regular inspection: Check for abnormal noise, temperature rise and grease leakage; monitor bearing vibration and temperature, replace lubricant immediately if it deteriorates, and inspect raceway wear if abnormal vibration occurs.

7. Installation Precautions: Pre-installation: Keep the installation area clean, remove burrs from shaft and bearing seat, check fitting surface roughness (Ra ≤ 0.8μm) and dimensional accuracy; avoid opening the bearing package until installation to prevent contamination. Installation: Apply a thin oil film on fitting surfaces, use a press to apply force evenly on the inner ring (avoid tapping), ensure coaxiality tolerance ≤ 0.01mm; align the oil holes with the equipment’s lubrication system for smooth lubricant supply. Fastening torque: 110-140N·m for bearing seat bolts, tighten evenly in diagonal order. Post-installation: Rotate manually to check for jamming; measure temperature after 30 minutes of operation (normal operating temperature ≤ 70℃); check lubricant circulation through oil holes to ensure no blockage. Safety: Wear protective gloves and goggles, take anti-static measures; use special lifting tools for handling, avoid direct contact with sharp edges and raceways to prevent damage.
