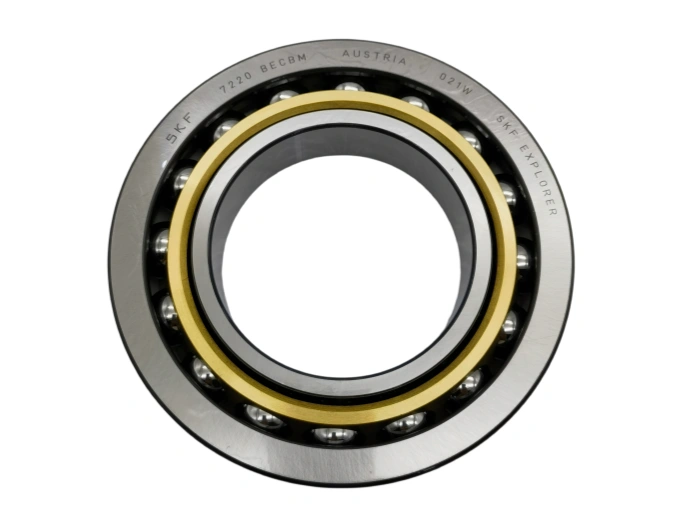

Angular Contact Ball Bearing Single Row 7220BECBM SKF

The SKF 7220BECBM is a high-performance single-row angular contact ball bearing, engineered for combined radial and axial loads in medium-to-heavy duty industrial applications. It fully complies with ISO 355 and DIN 628 standards, with suffixes denoting key configurations: B for 40° contact angle, E for enhanced design with larger steel balls, C for internal clearance, B for bearing grade, and M for glass fiber-reinforced polyamide cage. Its unique design integrates high load-bearing capacity, excellent high-speed stability and structural rigidity, distinguishing itself with optimized load distribution and reliable operation in harsh industrial environments.

1. Detailed Dimensional Parameters: Conforming to international bearing standards, the bearing has an inner diameter (d) of 100mm, outer diameter (D) of 180mm, and width (B) of 34mm. The minimum chamfer size (rₘᵢₙ) is 2.5mm, single weight is 3.63kg. Its tolerance grade is P0 (ISO 492), with inner/outer diameter tolerance of IT6 and width tolerance of IT7. The basic dynamic load rating is 158kN, basic static load rating is 140kN, reference speed (grease lubrication) is 3000r/min, and limiting speed (oil lubrication) is 4000r/min. It adopts normal radial internal clearance (CN), adapting to medium-speed and heavy-load operations.

2. Specific Material Description: Inner ring, outer ring and ball rolling elements are made of high-carbon chromium bearing steel (AISI 52100/SUJ2), refined by vacuum degassing technology to reduce non-metallic inclusions. After precision heat treatment, it reaches a hardness of 61-65 HRC, featuring excellent wear resistance, high fatigue strength and stable dimensional accuracy under cyclic loading. The retainer (suffix M) is glass fiber-reinforced polyamide (PA66+GF), with good heat resistance, low friction and light weight, ensuring stable ball guidance and reducing rotational noise. The bearing surface is treated with anti-rust coating to enhance corrosion resistance in general industrial environments.

3. Core Processing Technology: Key manufacturing processes follow SKF’s stringent quality standards: closed-die forging, CNC turning, controlled atmosphere heat treatment, precision grinding and superfinishing. Closed-die forging ensures dense internal structure and continuous metal fibers, enhancing bearing strength. CNC turning achieves Ra ≤ 0.3μm surface roughness, ensuring precise dimensional control. Heat treatment adopts nitrogen-hydrogen atmosphere to avoid oxidation and decarburization. Precision grinding with CBN砂轮 and superfinishing reduce raceway roughness to Ra ≤ 0.04μm, minimizing friction. The 40° contact angle is precision machined to optimize combined load distribution, and the PA66+GF cage is precision molded for tight fit with balls.

4. Service Life: Under standard working conditions (2500r/min, radial load 55kN, proper lubrication and clean environment), the L₁₀ basic rated life (90% reliability) is 20,000 operating hours, calculated in accordance with ISO 281:2007 standard. Key influencing factors include lubrication quality, contamination level, installation accuracy and load magnitude; insufficient lubrication or excessive contamination can reduce service life by 30-50%, while improper installation may cause premature raceway wear.

5. Application Scenarios and Industries: Widely used in machinery manufacturing, automotive, engineering machinery, power generation and机床 industries. Typical applications include large electric motors, gearboxes, centrifugal pumps, machine tool spindles and heavy-duty transmission systems. It is suitable for these scenarios due to its 40° contact angle (excellent combined load capacity), PA66+GF cage (stable high-speed operation) and optimized structural design, adapting to heavy-duty, medium-speed and precision-required working conditions.

6. Basic Maintenance Requirements: Maintenance cycle is 2000 operating hours. Lubrication: Lithium-based grease (NLGI 2) or extreme pressure gear oil (ISO VG 68), filling amount 15-30% of bearing free space; re-lubricate every 1500-2000 hours. Cleaning: Clean surface with clean kerosene; avoid corrosive cleaners. Regular inspection: Check for abnormal noise, temperature rise and grease leakage; replace lubricant if deteriorated, and inspect for ball or raceway wear if vibration increases.

7. Installation Precautions: Pre-installation: Keep area clean, remove burrs from shaft/housing, check fitting surface roughness (Ra ≤ 0.8μm) and dimensional accuracy. Installation: Apply thin oil film, press evenly on inner ring (no tapping), ensure coaxiality tolerance ≤ 0.02mm. Fastening torque: 130-160N·m for bearing seat bolts. Post-installation: Rotate manually to check jamming; measure temperature after 30 minutes (normal ≤ 72℃). Safety: Wear protective gloves/goggles, use specialized lifting tools, avoid direct contact with raceways.
