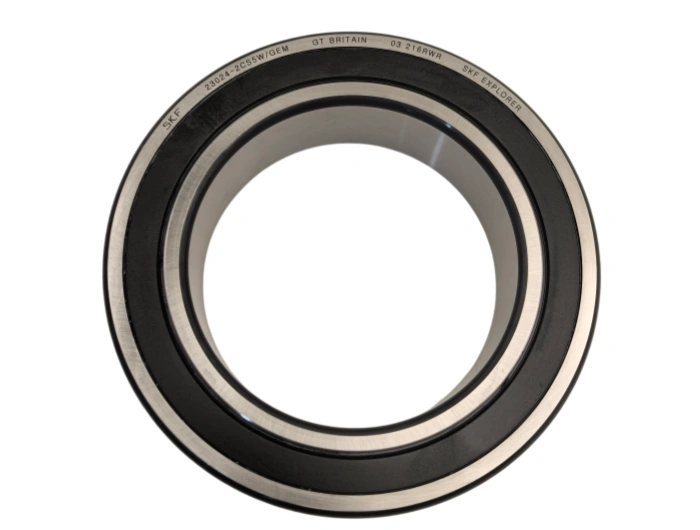

Spherical Roller Bearing 23024-2CS5W/GEM SKF

The 23024-2CS5W/GEM SKF is a sealed heavy-duty spherical roller bearing developed by SKF, equipped with double-sided CS5 contact seals and optimized GEM internal design. It features strong self-aligning performance, ultra-high heavy load capacity, excellent dustproof and waterproof performance, perfectly suitable for severe dusty, humid and impact-intensive industrial working conditions.

Industry Expertise
Global Reach
OEM/ODM Services

Get a Free Quote +86-510-6831-3099 fonkin-industries@188.com 8618751551686

Product Introduction
Detailed Parameters
Message Us

The 23024-2CS5W/GEM SKF is a sealed heavy-duty spherical roller bearing developed by SKF, equipped with double-sided CS5 contact seals and optimized GEM internal design. It features strong self-aligning performance, ultra-high heavy load capacity, excellent dustproof and waterproof performance, perfectly suitable for severe dusty, humid and impact-intensive industrial working conditions.
Complying strictly with ISO international rolling bearing standards, its standard dimensions: inner diameter 120 mm, outer diameter 180 mm, overall width 46 mm, chamfer 2.2×45°, tolerance grade P0, standard internal clearance. The integrated sealing structure avoids grease leakage and external pollutant invasion, realizing long-term maintenance-free operation.
In terms of material configuration, inner and outer rings adopt high-purity 100Cr6 vacuum degassed bearing steel, quenched hardness HRC 61-63, with outstanding wear resistance, contact fatigue resistance and impact resistance. Spherical rollers use high-precision hot-rolled bearing steel; reinforced brass machined cage owns high temperature resistance and structural stability, which stably guides rolling elements under heavy load.
Core manufacturing procedures include precise blank forging, precision CNC turning, controllable atmosphere heat treatment, raceway high-precision grinding and superfinishing process. Scientific heat treatment eliminates internal residual stress; superfinishing lowers surface roughness, reduces running friction and improves overall operation stability greatly.
Calculated per ISO 281 standard, the rated L10 service life of 23024-2CS5W/GEM SKF reaches 72000 hours under standard load, steady speed and good lubrication. Operating load, deflection angle, ambient humidity, sealing condition and lubrication status are the main factors affecting actual service life.
This sealed spherical roller bearing is widely used in mining machinery, cement equipment, metallurgical industry, large industrial fans, heavy-duty conveyors and construction machinery. Its powerful self-aligning ability can compensate shaft misalignment, and double seals adapt to harsh outdoor and workshop severe environments efficiently.
For daily maintenance, lubrication inspection is required every 400 working hours; high-viscosity extreme pressure industrial grease is recommended. Keep seal surfaces intact, regularly check operating temperature and running noise. Once seal aging or abnormal abrasion appears, replace accessories timely.
Before installation, clean matching shaft and housing thoroughly, adopt symmetrical press fitting and prohibit forced knocking. Strictly control coaxiality deviation, follow standard fastening torque, and perform full-load trial run after installation to confirm stable operation, so as to maximize the service performance of 23024-2CS5W/GEM SKF bearing.

BRAND	FONKIN/SKF/FAG/INA/NSK/NTN/TIMKEN/SNR/IKO/KOYO/ASAHI/FYH/THK/HIWIN/PMI
BEARINGS NO.	23024-2CS5W/GEM SKF
TYPE	Spherical Roller Bearing
Inner(d)mm	120
Outer(D)mm	180
Width(B)mm	46
WEIGHT/KG	3.98
EAN CODE	7316576 882418
