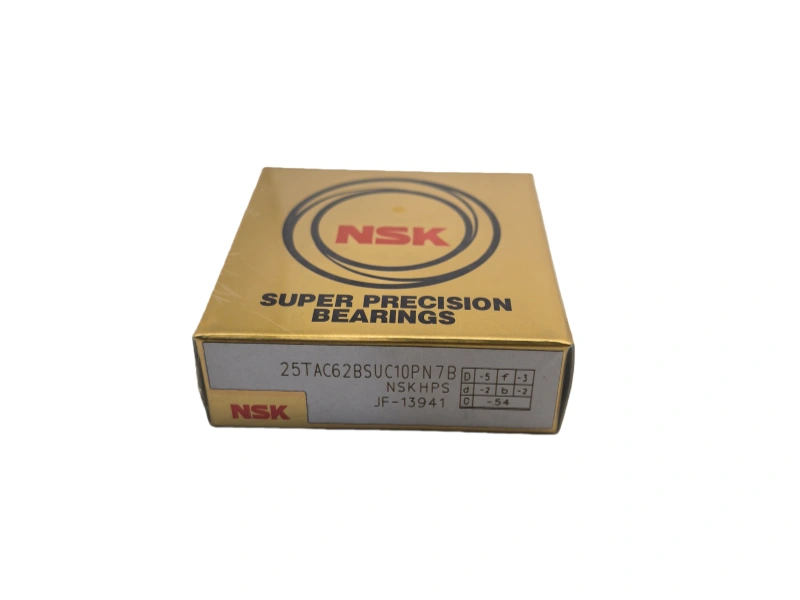

The NSK 25TAC62BSUC10PN7B is a high-precision angular contact ball bearing for ball screw support, with 25mm inner diameter, 62mm outer diameter and 15mm width. Its rings are made of chrome steel, and it has a polyamide cage, with a 60° contact angle and P4 precision grade.The SUC10 denotes a specific preload class. It excels in high rigidity and axial load capacity, running stably at high speeds. It is widely used in CNC machine tool spindles and precision ball screw systems, which is ideal for high-precision mechanical scenarios requiring accurate rotation.
| BRAND | FONKIN/SKF/FAG/INA/NSK/NTN/TIMKEN/SNR/IKO/KOYO/ASAHI/FYH/THK/HIWIN/PMI |
| BEARINGS NO. | 25TAC62BSUC10PN7B-NSK |
| TYPE | Angular Contact Ball Bearings |
| Inner(d)mm | 25 |
| Outer(D)mm | 62 |
| Width(B)mm | 15 |
| WEIGHT/KG | 0.252 |
| EAN CODE |
