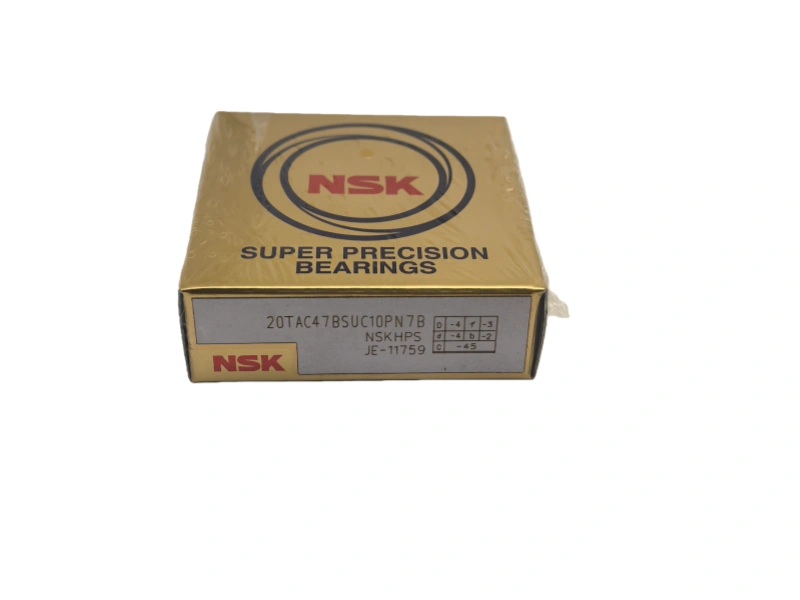

The NSK 20TAC47BSUC10PN7B is a high-precision angular contact ball bearing designed for ball screw support, featuring a 20mm inner diameter, 47mm outer diameter and 15mm width.
Industry Expertise
Global Reach
OEM/ODM Services
Product Introduction
Detailed Parameters
Message Us
The NSK 20TAC47BSUC10PN7B is a high-precision angular contact ball bearing designed for ball screw support, featuring a 20mm inner diameter, 47mm outer diameter and 15mm width. Its rings and rolling elements are crafted from premium SUJ2 high-carbon chromium bearing steel, ensuring exceptional hardness, wear resistance and dimensional stability for high-precision operations.The SUC10 suffix indicates a specific preload class, while PN7B represents strict precision standards, paired with a 60° contact angle for optimal axial load handling. It delivers high rigidity and low runout, suitable for high-speed rotation. Widely applied in CNC machine tool ball screw systems, precision linear stages and semiconductor manufacturing equipment, it excels in high-accuracy industrial scenarios.
| BRAND | FONKIN/SKF/FAG/INA/NSK/NTN/TIMKEN/SNR/IKO/KOYO/ASAHI/FYH/THK/HIWIN/PMI |
| BEARINGS NO. | 20TAC47BSUC10PN7B-NSK |
| TYPE | Angular Contact Ball Bearings |
| Inner(d)mm | 20 |
| Outer(D)mm | 47 |
| Width(B)mm | 15 |
| WEIGHT/KG | 0.135 |
| EAN CODE |
