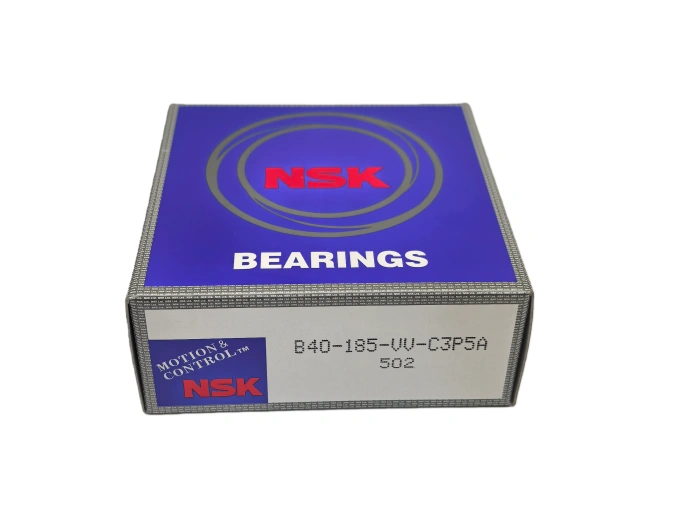

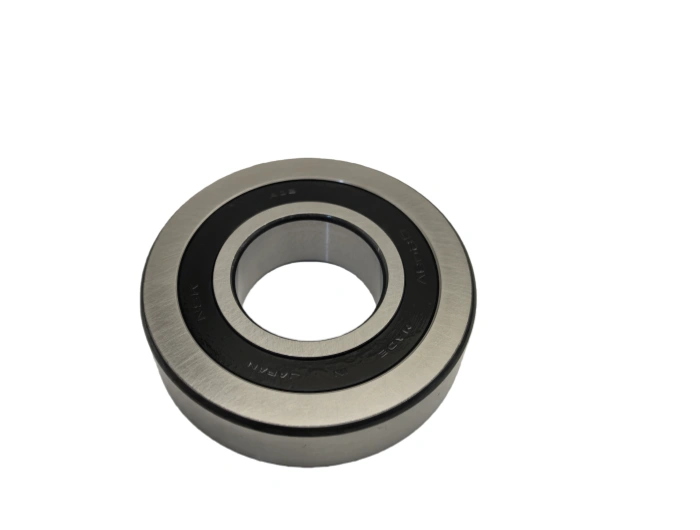

NSK B40-185-VV-C3-P5A is a high-precision deep groove ball bearing with 40mm bore, engineered for demanding industrial and automotive applications.
Industry Expertise
Global Reach
OEM/ODM Services
Product Introduction
Detailed Parameters
Message Us
NSK B40-185-VV-C3-P5A is a high-precision deep groove ball bearing with 40mm bore, engineered for demanding industrial and automotive applications. Its raceways and rolling elements are made of premium SUJ2/100Cr6 high-carbon chromium bearing steel, with precision heat treatment for superior hardness, wear and fatigue resistance. The VV suffix means double NBR rubber seals for full contamination protection and grease retention; C3 extra radial clearance adapts to thermal expansion, and P5A grade ensures high rotational accuracy. Equipped with a stamped steel cage for stable guidance, it excels in medium-speed, medium-load conditions. Ideal for industrial motors, hydraulic pumps, gearboxes, automotive auxiliary systems and automation equipment, it reliably bears radial/axial loads with low friction and long service life.
| BRAND | FONKIN/SKF/FAG/INA/NSK/NTN/TIMKEN/SNR/IKO/KOYO/ASAHI/FYH/THK/HIWIN/PMI |
| BEARINGS NO. | B40-185-VV-C3-P5A NSK |
| TYPE | DEEP GROOVE BALL BEARING |
| Inner(d)mm | 40 |
| Outer(D)mm | 80 |
| Width(B)mm | 18 |
| WEIGHT/KG | 0.366 |
| EAN CODE |
