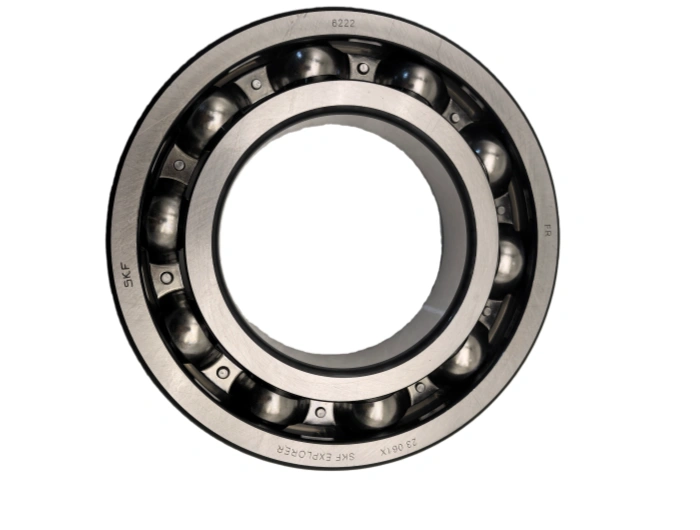

SKF 6222 is a standard single-row deep groove ball bearing with 110mm bore, 200mm outer diameter and 38mm width, a classic general-purpose bearing for industrial and mechanical applications. Its raceways and rolling balls are crafted from premium 100Cr6 high-carbon chromium bearing steel, with precision heat treatment for superior hardness, wear and fatigue resistance, ensuring stable long-term operation. It features a stamped steel cage for low-friction ball guidance and optimal load distribution. Unsealed design allows flexible lubrication customization. Ideal for electric motors, fans, pumps, gearboxes, conveyors and agricultural machinery, it reliably bears radial loads and light axial loads at medium-to-high speeds in general industrial environments.
| BRAND | FONKIN/SKF/FAG/INA/NSK/NTN/TIMKEN/SNR/IKO/KOYO/ASAHI/FYH/THK/HIWIN/PMI |
| BEARINGS NO. | 6222 SKF |
| TYPE | DEEP GROOVE BALL BEARING |
| Inner(d)mm | 110 |
| Outer(D)mm | 200 |
| Width(B)mm | 38 |
| WEIGHT/KG | 4.48 |
| EAN CODE | 7316576622175 |
