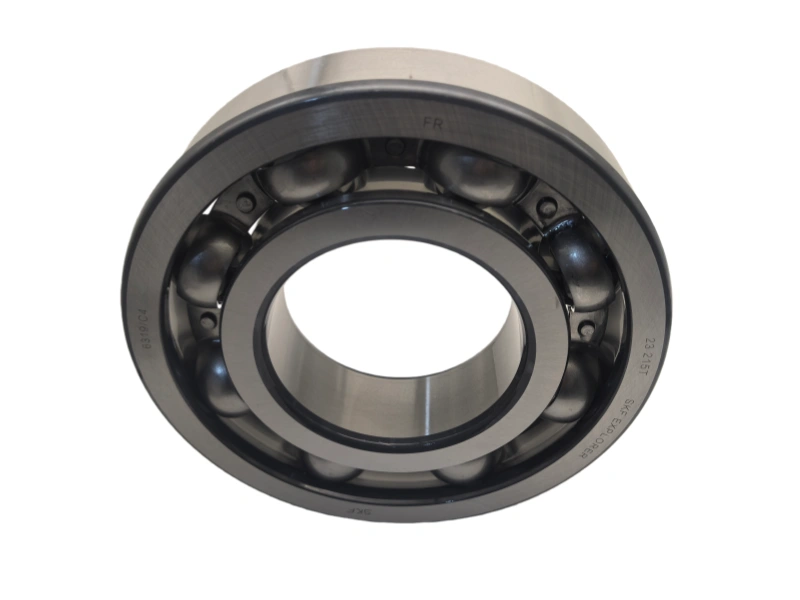

SKF 6319/C4 is a single-row open-type deep groove ball bearing with 95mm bore, 200mm outer diameter, and 45mm width, featuring C4 extra-loose radial clearance for thermal expansion tolerance.
Industry Expertise
Global Reach
OEM/ODM Services
Product Introduction
Detailed Parameters
Message Us
SKF 6319/C4 is a single-row open-type deep groove ball bearing with 95mm bore, 200mm outer diameter, and 45mm width, featuring C4 extra-loose radial clearance for thermal expansion tolerance. Its rolling elements and raceways are made of high-carbon chrome bearing steel (100Cr6) for excellent hardness, wear resistance, and load capacity; the cage is stamped steel for stable ball guidance. It has a dynamic load rating of 159kN, static load rating of 118kN, and operates at -20°C to 120°C, with a reference speed of 7000r/min. Ideal for electric motors, gearboxes, pumps, and industrial fans, it excels in high-speed, medium-heavy load applications requiring reliable, low-friction rotation and thermal adaptability.
| BRAND | FONKIN/SKF/FAG/INA/NSK/NTN/TIMKEN/SNR/IKO/KOYO/ASAHI/FYH/THK/HIWIN/PMI |
| BEARINGS NO. | 6319/C4 SKF |
| TYPE | DEEP GROOVE BALL BEARING |
| Inner(d)mm | 95 |
| Outer(D)mm | 200 |
| Width(B)mm | 45 |
| WEIGHT/KG | 6.09 |
| EAN CODE | 7316577068507 |
