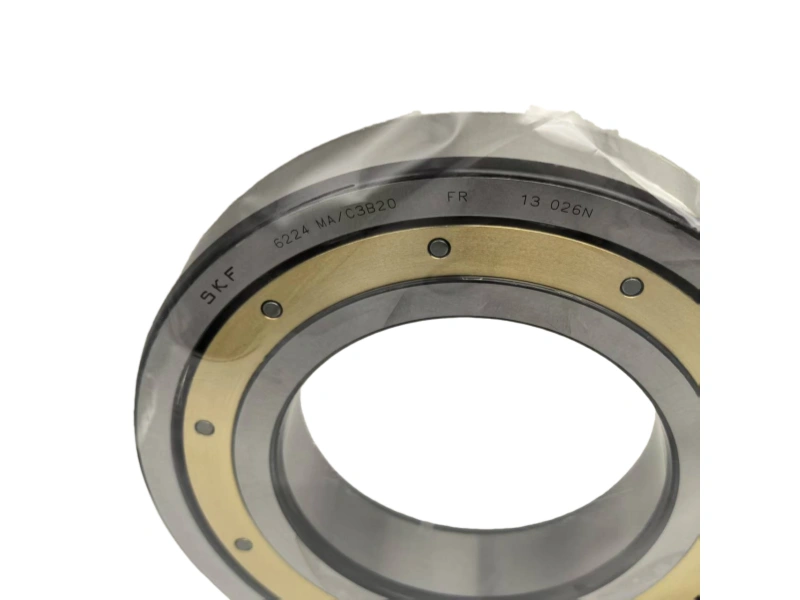

SKF 6224MA_C3B20 is a single - row open deep groove ball bearing with dimensions 120mm (bore), 215mm (OD), 40mm (width).
Industry Expertise
Global Reach
OEM/ODM Services
Product Introduction
Detailed Parameters
Message Us
SKF 6224MA_C3B20 is a single - row open deep groove ball bearing with dimensions 120mm (bore), 215mm (OD), 40mm (width). Its core material is high - grade chrome bearing steel (SUJ2/100Cr6), delivering excellent hardness and wear resistance; the cage is machined brass for high - speed stability and heat dissipation. It has C3 radial clearance and B20 tolerance, basic dynamic load 146kN, static load 118kN, reference speed 6300r/min, limiting speed 5600r/min. Ideal for industrial fans, pumps, compressors, electric motors, gearboxes, and textile machinery, handling radial and bidirectional axial loads in moderate - to - high - speed, low - maintenance applications requiring reliable operation.
| BRAND | FONKIN/SKF/FAG/INA/NSK/NTN/TIMKEN/SNR/IKO/KOYO/ASAHI/FYH/THK/HIWIN/PMI |
| BEARINGS NO. | 6224MA_C3B20-SKF |
| TYPE | DEEP GROOVE BALL BEARING |
| Inner(d)mm | 120 |
| Outer(D)mm | 215 |
| Width(B)mm | 40 |
| WEIGHT/KG | 6.33 |
| EAN CODE | 7316570863833 |
