BTH-1222B SKF

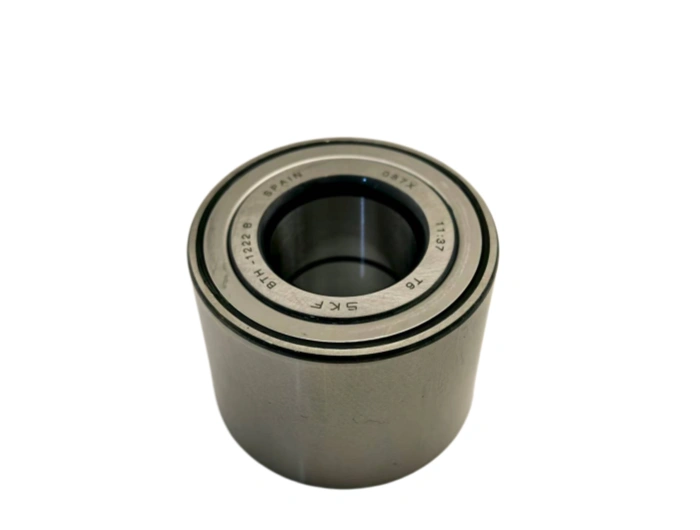

Tapered Roller Bearings BTH-1222B SKF

SKF BTH-1222B is a premium single-row deep groove ball bearing engineered by SKF for high-load, high-precision industrial and automotive applications. Optimized for exceptional radial load capacity, low friction, and extended service life, this bearing delivers reliable performance in compact spaces, making it a top choice for demanding powertrain and transmission systems.

Industry Expertise
Global Reach
OEM/ODM Services

Product Introduction
Detailed Parameters
Message Us

SKF BTH-1222B is a premium single-row deep groove ball bearing engineered by SKF for high-load, high-precision industrial and automotive applications. Optimized for exceptional radial load capacity, low friction, and extended service life, this bearing delivers reliable performance in compact spaces, making it a top choice for demanding powertrain and transmission systems.
1. Precise Dimension Parameters (ISO 492 Standard)
- Bore diameter (d): 30 mm (tolerance: h5, −0.008/+0 mm)
- Outer diameter (D): 62 mm (tolerance: H6, 0/+0.019 mm)
- Width (B): 48 mm (tolerance: ±0.05 mm)
- Chamfer dimension (rmin/rmax): 1.0 mm / 1.2 mm
- Weight: 0.709 kg
- Precision class: P6 (ISO 492), radial runout ≤ 0.005 mm
- Internal clearance: CN (normal, ISO 5753)
- Basic dynamic load rating (Cr): 42.8 kN
- Basic static load rating (C0r): 31.5 kN
2. Premium Material Specification
- Inner/outer rings: High-carbon chromium bearing steel 100Cr6 (AISI 52100). Hardness: 60–64 HRC; excellent wear resistance, fatigue strength, and dimensional stability under heavy loads.
- Rolling balls: 100Cr6 (AISI 52100) precision-grade balls. Surface hardness: 61–65 HRC; uniform load distribution and minimal rotational friction.
- Cage: Pressed steel (SPCC). High structural rigidity, excellent ball guidance, and stable operation at speeds up to 5,000 rpmSKF 集团.
3. Advanced Manufacturing Process
- Hot forging: Precision closed-die forging for refined grain structure and enhanced mechanical integrity.
- CNC turning: High-precision machining achieving dimensional accuracy ≤ ±0.003 mm.
- Heat treatment: Vacuum hardening + tempering for uniform hardness, minimal distortion, and improved fatigue life.
- Grinding: Multi-stage precision grinding (raceway roughness Ra ≤ 0.15 μm).
- Superfinishing: Micro-honing process (Ra ≤ 0.04 μm) for raceways and balls, reducing friction and enhancing lubricant retention.
4. Service Life Performance
- Standard rating life (L10): 10,000–14,000 hours under ISO 281:2007 conditions (radial load 65% of Cr, 1,800 rpm, clean grease lubrication)SKF .
- Limiting speed (grease): 4,500 rpm; (oil): 5,500 rpmSKF .
- Key life factors: Load magnitude, lubrication quality, contamination, operating temperature (-30°C to +120°C), and shaft alignment accuracy.
5. Target Applications & Industries
- Automotive: Transmission gearboxes, differential assemblies, electric vehicle (EV) drive systems (high radial load, compact design).
- Industrial gearboxes: Helical gear reducers, conveyor drives (continuous heavy-duty operation).
- Agricultural machinery: Tractor transmissions, harvester drives (harsh environments, misalignment tolerance).
- Pumps & compressors: Centrifugal pumps, air compressors (low noise, stable high-speed running).
- Material handling: Forklift gearboxes, conveyor pulleys (shock load resistance, long service life).
6. Maintenance & Lubrication
- Lubricant: SKF LGMT 3 / Mobilux EP 2 lithium complex grease (NLGI 2) or ISO VG 68–100 mineral oil.
- Regreasing interval: 1,800–2,200 operating hours; 600 hours under heavy contamination.
- Grease quantity: 9–11 g (30–35% of internal free space).
- Inspection: Every 600 hours; check noise, vibration, temperature (<75°C), and leakage; clean with petroleum ether if contaminated.
7. Installation Guidelines
- Pre-installation: Clean shaft/housing with isopropyl alcohol; inspect for burrs, corrosion, and dimensional accuracySKF .
- Mounting: Induction heater (80–100°C) for inner ring; hydraulic press (max 40 kN) for outer ring; avoid direct hammering.
- Alignment: Radial misalignment ≤ 0.002 mm/100 mm; axial runout ≤ 0.004 mm.
- Fastening: Lock nut torque: 65–75 Nm (grade 8.8 bolts).
- Post-installation: Manual rotation check; temperature rise <30°C above ambient; vibration test for smooth operation.
BRAND FONKIN/SKF/FAG/INA/NSK/NTN/TIMKEN/SNR/IKO/KOYO/ASAHI/FYH/THK/HIWIN/PMI
BEARINGS NO. BTH-1222B SKF
TYPE Tapered Roller Bearings
Inner(d)mm 30
Outer(D)mm 62
Width(B)mm 48
WEIGHT/KG 0.7
EAN CODE 7316577695659
Tel

+86-510-6831-3099

E-mail

fonkin-industries@188.com

Address

No.105, Huixin Road,Yuqi Industrial Park, Huishan District, hunqi Road, Yuqi Town, Wuxi, Jiangsu Province, P.R.CHINA

All the fields are required. By sending the form you agree to the Terms & Conditions

Prev none

back

Next Tapered Roller Bearings 32056-X-XL FAG

BRAND	FONKIN/SKF/FAG/INA/NSK/NTN/TIMKEN/SNR/IKO/KOYO/ASAHI/FYH/THK/HIWIN/PMI
BEARINGS NO.	BTH-1222B SKF
TYPE	Tapered Roller Bearings
Inner(d)mm	30
Outer(D)mm	62
Width(B)mm	48
WEIGHT/KG	0.7
EAN CODE	7316577695659
