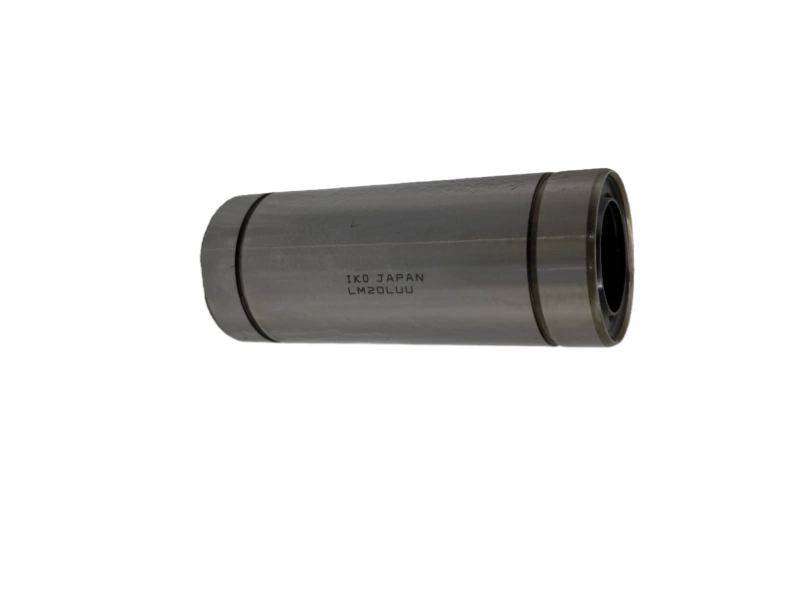

IKO LM20LUU is a long-type linear ball bearing with a 20mm bore, 32mm outer diameter, and 80mm length, featuring a recirculating ball design for smooth, low-friction linear motion.
Industry Expertise
Global Reach
OEM/ODM Services
Product Introduction
Detailed Parameters
Message Us
IKO LM20LUU is a long-type linear ball bearing with a 20mm bore, 32mm outer diameter, and 80mm length, featuring a recirculating ball design for smooth, low-friction linear motion. Its precision balls and raceways are made of high-carbon chrome bearing steel (SUJ2), ensuring superior hardness, wear resistance, and load capacity; the retainer is engineering plastic for quiet operation and stable ball guidance. It has a dynamic load rating of 10.2kN, static load rating of 23.6kN, and operates in temperatures from -20°C to 120°C. Ideal for 3D printers, automated production lines, medical equipment, and small CNC machines, it delivers accurate linear movement in light-to-medium load, high-precision applications.
| BRAND | FONKIN/SKF/FAG/INA/NSK/NTN/TIMKEN/SNR/IKO/KOYO/ASAHI/FYH/THK/HIWIN/PMI |
| BEARINGS NO. | LM20LUU IKO |
| TYPE | Linear sliders rails |
| Inner(d)mm | 20 |
| Outer(D)mm | 32 |
| Width(B)mm | 42 |
| WEIGHT/KG | 0.162 |
| EAN CODE |
