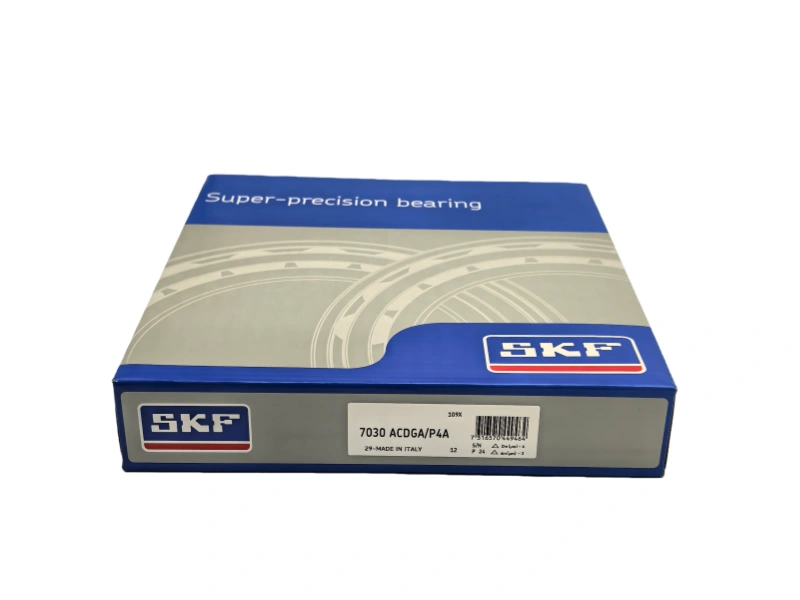

The SKF 7030ACDGA/P4A is a high-precision angular contact ball bearing with an inner diameter of 150mm, outer diameter of 225mm and width of 35mm. Its rings and rolling elements are made of high-carbon chromium bearing steel (AISI 52100), delivering exceptional hardness, wear resistance and dimensional stability. The ACD denotes a 25° contact angle, while P4A represents top-tier precision grade.Engineered for high rotational speeds and combined loads, it ensures minimal runout and low friction. Widely applied in CNC machine tool spindles, precision grinding machines, high-speed motors and aerospace equipment, it excels in high-precision, high-speed industrial scenarios requiring reliable performance.
| BRAND | FONKIN/SKF/FAG/INA/NSK/NTN/TIMKEN/SNR/IKO/KOYO/ASAHI/FYH/THK/HIWIN/PMI |
| BEARINGS NO. | 7030ACDGA/P4A-SKF |
| TYPE | Angular Contact Ball Bearings |
| Inner(d)mm | 150 |
| Outer(D)mm | 225 |
| Width(B)mm | 35 |
| WEIGHT/KG | 4.15 |
| EAN CODE | 7316570 449464 |
