The FAG 6208TB-P63 is a single-row deep groove ball bearing, boasting an inner diameter of 40mm, outer diameter of 80mm and width of 18mm.
Industry Expertise
Global Reach
OEM/ODM Services
Product Introduction
Detailed Parameters
Message Us

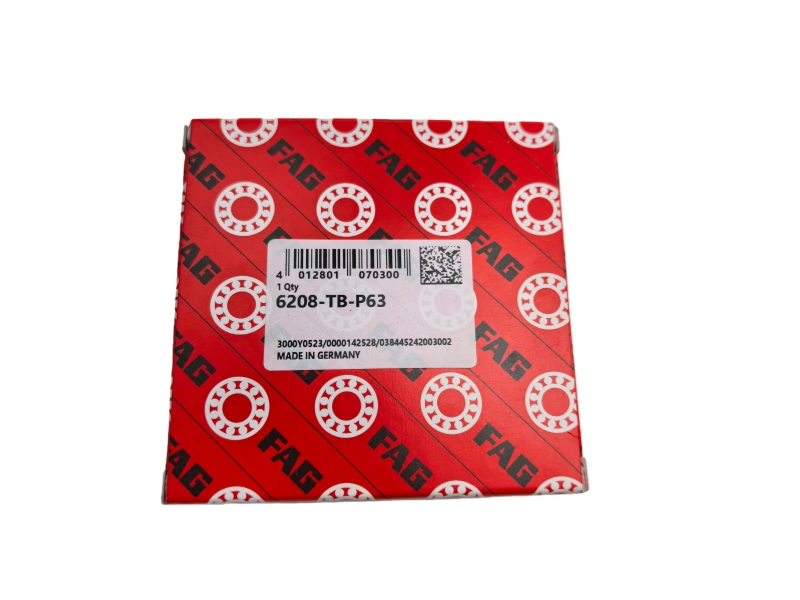

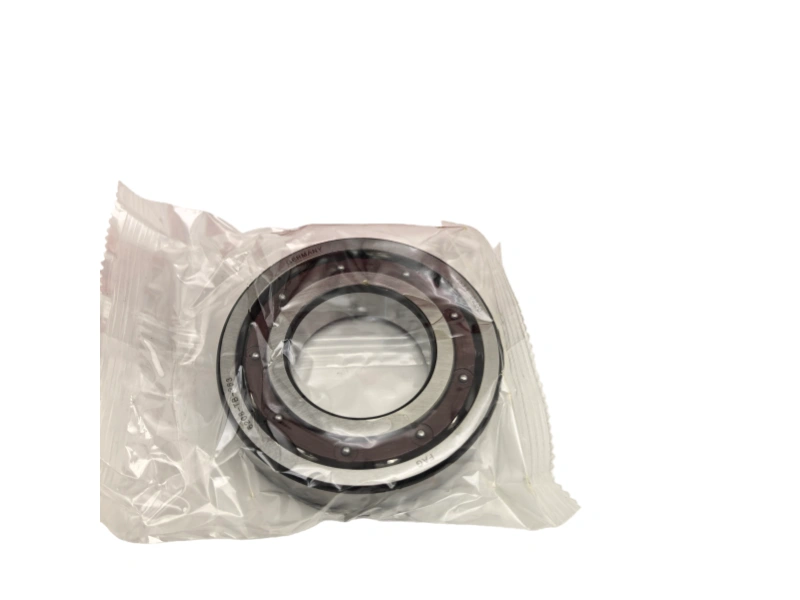

The FAG 6208TB-P63 is a single-row deep groove ball bearing, boasting an inner diameter of 40mm, outer diameter of 80mm and width of 18mm. Its rings and rolling elements are made of premium high-carbon chromium bearing steel (AISI 52100), ensuring exceptional hardness, wear resistance and fatigue strength. The TB suffix means a glass fiber-reinforced polyamide cage, while P63 indicates high precision grade and enlarged radial clearance.It efficiently withstands combined radial and light axial loads, featuring low friction and high rotational speed. Widely applied in CNC machine tool spindles, high-speed motors, air compressors and precision gear reducers, it delivers stable, reliable performance in high-precision industrial settings.
| BRAND | FONKIN/SKF/FAG/INA/NSK/NTN/TIMKEN/SNR/IKO/KOYO/ASAHI/FYH/THK/HIWIN/PMI |
| BEARINGS NO. | 6208TB-P63-FAG |
| TYPE | DEEP GROOVE BALL BEARING |
| Inner(d)mm | 40 |
| Outer(D)mm | 80 |
| Width(B)mm | 18 |
| WEIGHT/KG | 0.367 |
| EAN CODE | 4012801 070300 |
