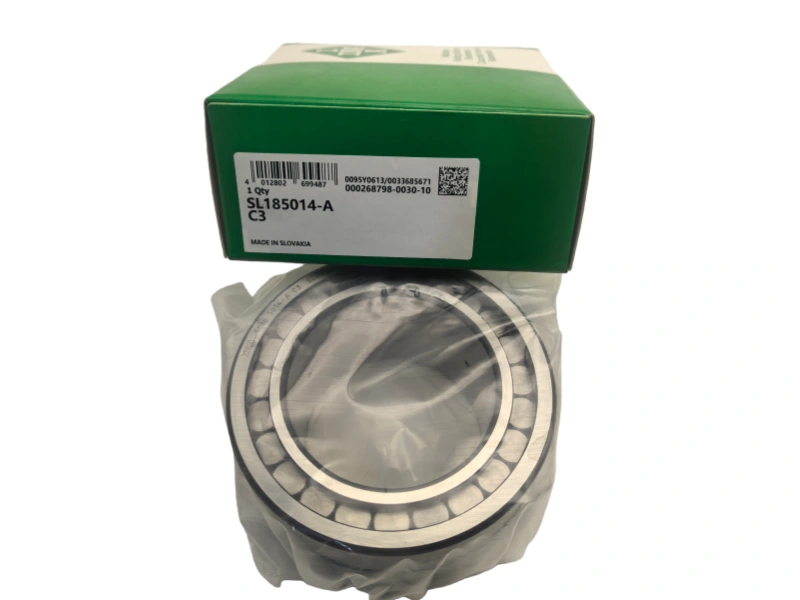

The INA SL185014A/C3 is a double-row full-complement cylindrical roller bearing.
Industry Expertise
Global Reach
OEM/ODM Services
Product Introduction
Detailed Parameters
Message Us
The INA SL185014A/C3 is a double-row full-complement cylindrical roller bearing. It has an inner diameter of 70mm, outer diameter of 110mm and width of 54mm. Made of GCr15 (AISI 52100) bearing steel, it ensures high rigidity and durability.Marked C3, it has enlarged radial clearance. Its dynamic load rating is 233kN and static load rating 350kN, with a reference speed of 2650rpm. It bears heavy radial loads and certain axial loads efficiently.Widely applied in gear reducers, double-beam cranes, screw chillers and heat exchangers, it suits harsh industrial settings requiring stable and long-lasting operation.
| BRAND | INA/FONKIN/SKF/FAG/NSK/NTN/TIMKEN/ZKL/PEP/KOYO |
| BEARINGS NO. | SL185014A/C3-INA |
| TYPE | Cylindrical Roller Bearing double Row |
| Inner(d)mm | 70 |
| Outer(D)mm | 110 |
| Width(B)mm | 54 |
| WEIGHT/KG | 1.87 |
| EAN CODE |
