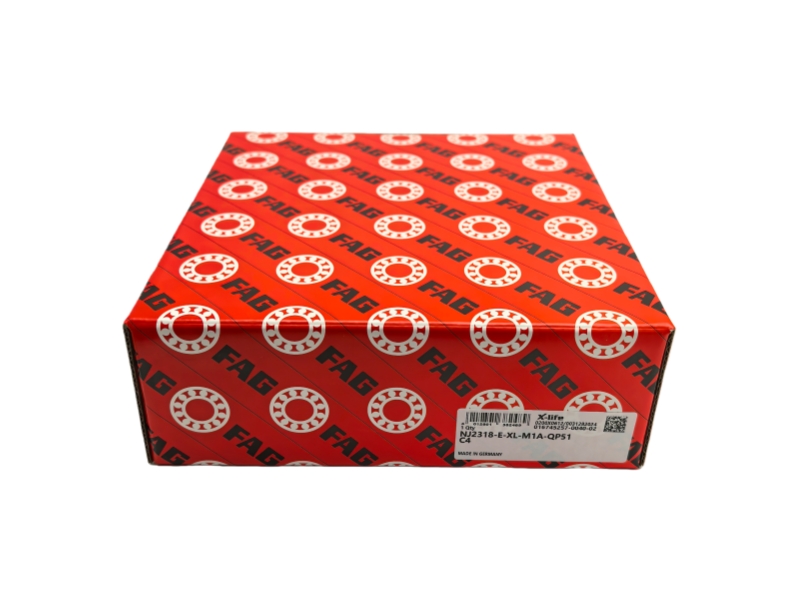

FAG NJ2318E - XL - M1A - QP51 - C4 is a single - row cylindrical roller bearing with NJ design.
Industry Expertise
Global Reach
OEM/ODM Services
Product Introduction
Detailed Parameters
Message Us
FAG NJ2318E - XL - M1A - QP51 - C4 is a single - row cylindrical roller bearing with NJ design. It has an inner diameter of 90mm, outer diameter of 190mm, width of 64mm and weighs 9.1kg.Its cage is M1A type two - piece solid brass, guided by the outer ring rib. The bearing has no seal and a cylindrical bore, with C4 radial internal clearance that is larger than C3. The "E" suffix means it has enhanced load capacity, and "QP51" meets vibrating screen specifications.It suits gearboxes, agricultural machinery, pumps, compressors and electric motors, handling high radial forces and single - direction axial forces well, and allows easy installation due to detachable rings. It works stably at temperatures up to 120°C.
| BRAND | INA/FONKIN/SKF/FAG/NSK/NTN/TIMKEN/ZKL/PEP |
| BEARINGS NO. | NJ2318E-XL-M1A-QP51-C4-FAG-FONKIN |
| TYPE | Cylindrical Roller Bearing double Row |
| Inner(d)mm | 90 |
| Outer(D)mm | 190 |
| Width(B)mm | 64 |
| WEIGHT/KG | 9.1 |
| EAN CODE | 4012801 382489 |
