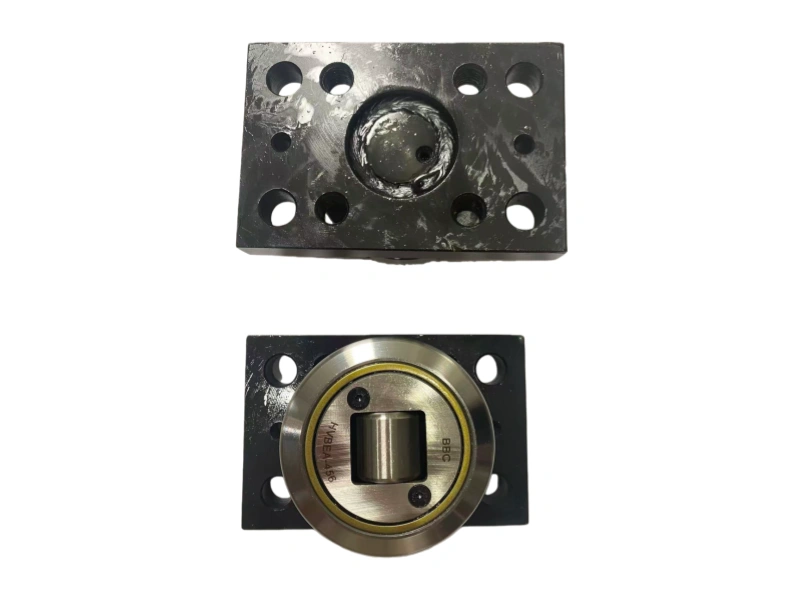

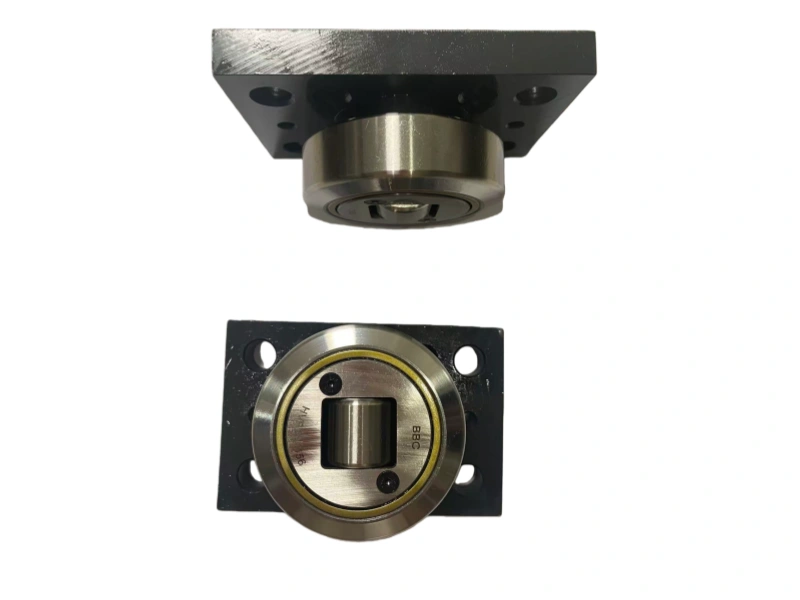

HEBEA456 is a Hevi - Rail size 2 single - roller adjustable linear cam - roller bearing assembly, with a 77.7mm bearing diameter, 48mm depth, and 76×121×64mm overall dimensions, compatible with size 2 Hevi - Rail profile rails.
Industry Expertise
Global Reach
OEM/ODM Services
Product Introduction
Detailed Parameters
Message Us
HEBEA456 is a Hevi - Rail size 2 single - roller adjustable linear cam - roller bearing assembly, with a 77.7mm bearing diameter, 48mm depth, and 76×121×64mm overall dimensions, compatible with size 2 Hevi - Rail profile rails. Its core components are made of hardened chrome steel (100Cr6) for high rigidity and wear resistance; the flange plate is carbon steel for robust mounting. It has max radial static load 12.9kN, axial static load 4kN, permanent grease lubrication, operating temp - 30°C to 120°C. Perfect for material handling, packaging lines, automotive assembly, steel/paper processing, and conveyor systems, handling heavy radial/axial/moment loads in low - to - medium precision, harsh industrial environments requiring long - lasting, low - maintenance linear motion.
| BRAND | INA/FONKIN/SKF/FAG/NSK/NTN/TIMKEN/ZKL/PEP/KOYO/TSUBAKI |
| BEARINGS NO. | HEBEA456 FONKIN |
| TYPE | Cylindrical Roller Bearing Single Row |
| Inner(d)mm | 40 |
| Outer(D)mm | 121.3 |
| Width(B)mm | 48 |
| WEIGHT/KG | 2.4 |
| EAN CODE |
