NF324EMC3 NSK

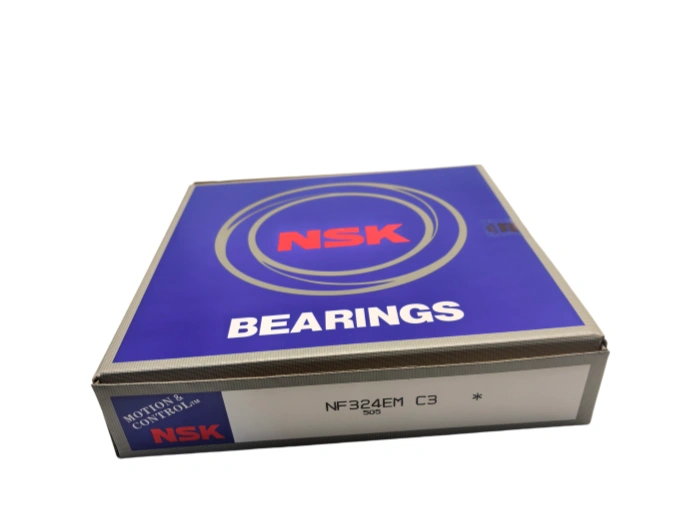

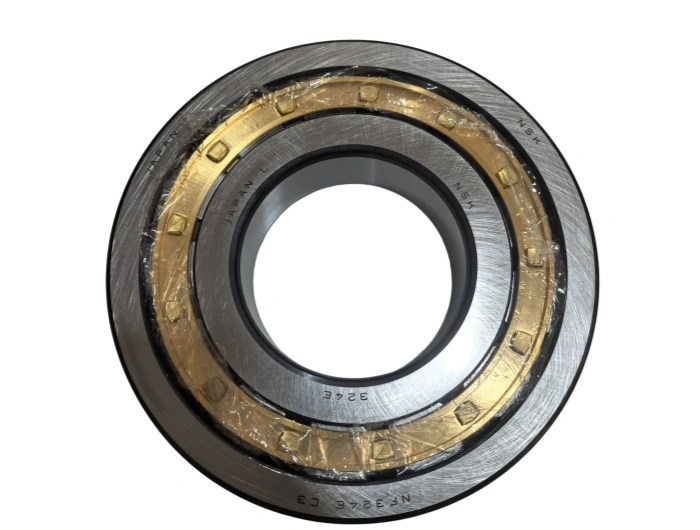

Cylindrical Roller Bearing NF324EMC3 NSK

NSK NF324EMC3 is a high-performance single-row cylindrical roller bearing from NSK’s EM series, featuring an NF-type separable structure, one-way axial load capability, and C3 radial clearance. Engineered with enhanced load capacity and a precision brass cage, it delivers exceptional radial rigidity, low friction, and extended service life for heavy-duty industrial machinery, transmissions, and large rotating equipment operating under continuous high loads.

Industry Expertise
Global Reach
OEM/ODM Services

Product Introduction
Detailed Parameters
Message Us

NSK NF324EMC3 is a high-performance single-row cylindrical roller bearing from NSK’s EM series, featuring an NF-type separable structure, one-way axial load capability, and C3 radial clearance. Engineered with enhanced load capacity and a precision brass cage, it delivers exceptional radial rigidity, low friction, and extended service life for heavy-duty industrial machinery, transmissions, and large rotating equipment operating under continuous high loads.
1. Dimension Parameters (ISO 492 & JIS B 1521 Standard)
- Bore (d): 120 mm (tolerance: −0.013/+0 mm, ISO P0/ABEC 1)
- Outer diameter (D): 260 mm (tolerance: 0/+0.025 mm)
- Width (B): 55 mm (tolerance: ±0.06 mm)
- Chamfer (r/r₁ min): 3 mm
- Weight: 15.0 kg
- Dynamic load rating (Cr): 450 kN
- Static load rating (C0r): 510 kN
- Limiting speed (grease): 2,200 rpm; (oil): 2,800 rpm
- Radial clearance (C3): 0.018–0.030 mm
- Structure: NF-type (single-row, outer ring double-ribbed, inner ring single-ribbed)
- Precision class: ISO P0 (standard precision)
2. Material Specification
- Inner/outer rings & rollers: SUJ2 (GCr15/100Cr6/AISI 52100) high-carbon chromium bearing steel. Hardness: 60–64 HRC; superior rolling fatigue strength, wear resistance, and dimensional stability under heavy radial loads.
- Cage: High-strength cast brass (CuZn25Al5) (EM design). One-piece, roller-guided construction with optimized pocket geometry for high-speed stability, low noise, and exceptional rigidity.
- Surface: Black oxide anti-corrosion treatment for enhanced rust protection in industrial environments.
3. Core Manufacturing Process
- Precision hot forging: Controlled grain flow for maximum load-bearing integrity and impact resistance.
- CNC turning: Dimensional accuracy ≤ ±0.005 mm, ensuring strict geometric conformity.
- Vacuum heat treatment: Uniform martensitic structure, minimal distortion, and consistent hardness distribution.
- Profile grinding: Log-convex roller & raceway profiling (Ra ≤ 0.16 μm) to reduce stress concentration.
- Superfinishing: Honing process (Ra ≤ 0.05 μm) for ultra-smooth contact surfaces, minimizing friction and wear.
- Automated assembly: 100% dimensional, clearance, and noise inspection complying with NSK quality standards.
4. Service Life
- Standard rating life (L10): 6,000–8,000 hours (ISO 281:2007; 70% Cr radial load, 1,000 rpm, clean NLGI 2 EP grease).
- Key influencing factors: Lubrication contamination, operating temperature (-30°C to +120°C), mounting alignment, shaft hardness (≥58 HRC), and axial preload adjustment.
5. Applications & Industries
- Industrial gearboxes: Heavy-duty speed reducers, conveyor drives (high radial load capacity, rigidity).
- Machine tools: Large milling machines, lathe spindles, boring mills (precision radial support, axial location).
- Construction machinery: Excavator travel reducers, crane hoist mechanisms (shock load resistance).
- Mining equipment: Crushers, vibrating screens, conveyor pulleys (durability in dusty, high-load conditions).
- Railway & automotive: Locomotive traction motors, truck transmission shafts (high-speed stability, long life).
6. Maintenance & Lubrication
- Lubricant: NSK LG2 lithium complex grease (NLGI 2) or ISO VG 150–220 extreme-pressure gear oil.
- Regreasing interval: 800–1,000 hours; 400 hours in heavy dust/moisture.
- Grease quantity: 75–85 g (30–35% of internal free space).
- Inspection: Every 500 hours; check operating temperature (<90°C), noise, vibration, and lubricant leakage.
7. Installation Guidelines
- Pre-installation: Clean shaft/housing to Ra ≤ 1.6 μm; inspect for burrs, corrosion, and dimensional accuracy.
- Mounting: Hydraulic press (max 250 kN) or induction heating (80–100°C); separate inner/outer ring installation.
- Alignment: Angular misalignment ≤ 2′ (0.033°); radial runout ≤ 0.008 mm.
- Fastening: Lock nut torque: 220–240 Nm (grade 8.8 bolts); axial preload per NSK standard.
- Post-installation: Manual rotation check; temperature rise <40°C above ambient; vibration testing.
BRAND INA/FONKIN/SKF/FAG/NSK/NTN/TIMKEN/ZKL/PEP/KOYO/TSUBAKI
BEARINGS NO. NF324EMC3 NSK
TYPE Cylindrical Roller Bearing Single Row
Inner(d)mm 120
Outer(D)mm 260
Width(B)mm 55
WEIGHT/KG 15.32
EAN CODE
Tel

+86-510-6831-3099

E-mail

fonkin-industries@188.com

Address

No.105, Huixin Road,Yuqi Industrial Park, Huishan District, hunqi Road, Yuqi Town, Wuxi, Jiangsu Province, P.R.CHINA

All the fields are required. By sending the form you agree to the Terms & Conditions

Prev Cylindrical Roller Bearing SL185018-AC3 INA

back

Next Cylindrical Roller Bearing NU1014ECP SKF

BRAND	INA/FONKIN/SKF/FAG/NSK/NTN/TIMKEN/ZKL/PEP/KOYO/TSUBAKI
BEARINGS NO.	NF324EMC3 NSK
TYPE	Cylindrical Roller Bearing Single Row
Inner(d)mm	120
Outer(D)mm	260
Width(B)mm	55
WEIGHT/KG	15.32
EAN CODE
