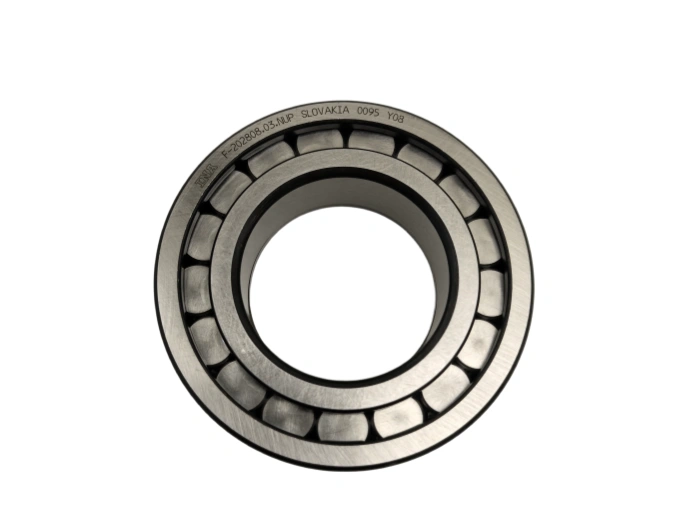

INA F-202808.03.NUP is a single-row cylindrical roller bearing (NUP design) engineered by Schaeffler Group for high-load, high-precision industrial powertrain and transmission applications. Optimized for radial load capacity, axial guidance, and extended service life, this bearing delivers superior performance in automotive, construction machinery, and machine tool systems.
Bore diameter (d): 50 mm (tolerance: h5, −0.008/+0 mm)
Outer diameter (D): 90 mm (tolerance: H6, 0/+0.019 mm)
Width (B): 27 mm (tolerance: ±0.05 mm)
Chamfer (rmin/rmax): 1.1 mm / 1.5 mm
Weight: 0.5 kg
Precision class: P6 (ISO 492 standard), ensuring low radial runout ≤ 0.006 mm
Clearance: CN (normal internal clearance, ISO 5753)
Inner/outer rings: High-carbon chromium bearing steel 100Cr6 (AISI 52100). Hardness: 60–64 HRC; high wear resistance, fatigue strength, and dimensional stability under heavy loads.
Rollers: 100Cr6 (AISI 52100) precision cylindrical rollers. Surface hardness: 61–65 HRC; uniform load distribution and minimal friction.
Cage: Glass-fiber reinforced polyamide 66 (PA66-GF30). Temperature resistance: −30 °C to +120 °C; lightweight, low friction, and excellent roller guidance.
Hot forging: Precision die forging for dense grain structure and high mechanical strength.
CNC turning: High-precision machining to achieve dimensional accuracy ≤ ±0.003 mm.
Heat treatment: Vacuum hardening + low-temperature tempering for uniform hardness, minimal distortion, and enhanced fatigue life.
Grinding: Multi-stage surface grinding (raceway roughness Ra ≤ 0.2 μm).
Superfinishing: Honing process for raceway and roller surfaces (Ra ≤ 0.05 μm), reducing friction and improving lubrication retention.
Standard rating life (L10): 8,000–12,000 hours under ISO 281:2007 standard conditions (radial load 70% of Cr, 1,500 rpm, clean oil lubrication).
Basic dynamic load rating (Cr): 68.5 kN; basic static load rating (C0r): 62.8 kN.
Key life factors: Load magnitude, lubrication quality, contamination, operating temperature, and alignment accuracy.
Automotive transmissions: Gearboxes, differential assemblies, and electric vehicle (EV) drive systems (high radial load, compact envelope).
Construction machinery: Excavator travel reducers, concrete mixer gearboxes (heavy shock loads, dust resistance).
Machine tools: Spindle gearboxes, feed drives (high precision, low noise, stable running).
Industrial gear units: General-purpose reducers, conveyor drives (continuous heavy-duty operation).
Agricultural equipment: Tractor transmissions, harvester drives (harsh environments, long maintenance intervals).
Lubricant: Mobilith SHC 220 / Shell Gadus S2 V220 2 lithium complex grease (NLGI 2) or ISO VG 68–100 mineral oil.
Regreasing interval: 1,500–2,000 operating hours (continuous operation); 500 hours under heavy contamination.
Grease quantity: 12–15 g (30–40% of internal free space).
Inspection: Check every 500 hours for noise, vibration, temperature (<75 °C), and leakage; clean with petroleum ether if contaminated.
Pre-installation: Clean housing/shaft with isopropyl alcohol; check for burrs, scratches, or corrosion.
Mounting: Use induction heater (80–100 °C) for inner ring; press outer ring with hydraulic press (max force: 50 kN); avoid direct hammering.
Alignment: Radial misalignment ≤ 0.002 mm/100 mm; axial runout ≤ 0.005 mm.
Fastening: Lock nut torque: 85–95 Nm (grade 8.8 bolts).
Post-installation: Rotate manually to confirm smooth operation; measure temperature rise (<30 °C above ambient).
| BRAND | INA/FONKIN/SKF/FAG/NSK/NTN/TIMKEN/ZKL/PEP/KOYO/TSUBAKI |
| BEARINGS NO. | F-202808.03.NUP INA |
| TYPE | Cylindrical Roller Bearing Single Row |
| Inner(d)mm | 50 |
| Outer(D)mm | 90 |
| Width(B)mm | 27 |
| WEIGHT/KG | 0.5 |
| EAN CODE | 4012802706130 |
