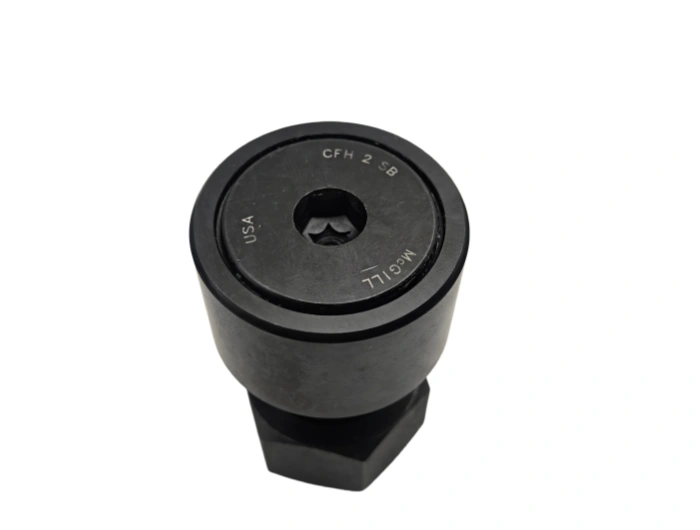

cam followers bearings CHF2SB-MCGILL

McGill CHF2SB is a heavy-duty, precision stud-type cam follower needle bearing from the premium CAMROL® series, engineered for exceptional radial load capacity, shock resistance, and reliable performance in demanding linear motion and cam-driven systems. This American-made McGill bearing integrates a full complement needle design, heavy-duty stud, and LUBRI-DISC® sealing, conforming to ABMA/ANSI standard specifications for industrial cam follower applications.

1. Precise Dimension Parameters

• Roller Diameter (OD): 2.0000 in (50.800 mm)

• Roller Width (B): 1.2500 in (31.750 mm)

• Stud Diameter (d): 0.8750 in (22.225 mm)

• Thread Size: 7/8-14 UNC

• Stud Length: 2.0000 in (50.800 mm)

• Corner Radius (r): 0.0625 in (1.588 mm)

• Tolerance Class: ABMA Standard (P0, ABEC 1)

• Radial Dynamic Load Rating (C): 8090 lbf (35.99 kN)

• Radial Static Load Rating (C₀): 8200 lbf (36.48 kN)

• Limiting Speed: 1400 rpm

• Weight: 1.28 lbs (0.58 kg)

2. Premium Material Specifications

• Outer Ring & Rolling Elements: AISI 52100 (100Cr6) bearing steel — Hardness 60–64 HRC, high core hardness, superior wear resistance, and excellent rolling contact fatigue strength.

• Inner Stud: 8620H alloy steel (induction hardened) — High tensile strength (≥ 1200 MPa), exceptional toughness, and resistance to bending fatigue under shock loads.

• Cage: Full complement (no cage) — Maximizes needle roller count for highest radial load capacity.

• Surface Coating: Black oxide finish on all external surfaces — Corrosion protection, anti-galling, and enhanced lubricant adhesion.

• Seals: Nitrile rubber (NBR) LUBRI-DISC® seals — Wide operating temperature range (-40°F to 225°F/-40°C to 107°C), excellent contamination exclusion.

3. Advanced Manufacturing Process

1. Hot Forging: Precision forging of outer rings and studs for refined grain flow and structural integrity.

2. CNC Machining: Automated turning and milling to strict dimensional tolerances for stud and ring profiles.

3. Heat Treatment:

• Rings/Rollers: Through hardening (quenching/tempering) to 60–64 HRC.

• Stud: Selective induction hardening on raceway surfaces for targeted wear resistance.

4. Precision Grinding: Multi-stage grinding of raceways and OD to achieve surface finish Ra ≤ 0.2 μm and geometric accuracy.

5. Superfinishing: Micro-finishing of needle rollers and raceways to minimize friction and maximize fatigue life.

6. Assembly & Testing: Automated full-complement needle assembly, seal installation, and 100% radial clearance, torque, and leak testing.

4. Service Life & Durability

• Standard Life (ISO 281/ABMA 9): ≥ 8,000 hours under 40% rated load, 750 rpm, and proper lubrication.

• Full Complement Advantage: 25–35% higher load capacity and longer life vs. caged cam follower designs.

• Key Life Factors: Lubrication cleanliness, contamination control, mounting alignment, operating temperature (<180°F/82°C), and shock load magnitude.

5. Target Applications & Industries

• Primary Applications: Cam mechanisms, linear motion guides, conveyor systems, indexing tables, printing presses, and material handling equipment.

• Core Industries: Industrial automation, machine tools, packaging machinery, automotive manufacturing, and heavy equipment.

• Fit Rationale: Full complement needle design delivers exceptional radial load capacity; self-aligning capability compensates for minor misalignment; sealed construction prevents contamination, ideal for continuous-duty, high-shock industrial environments.

6. Maintenance Requirements

• Lubrication: Lithium complex grease (NLGI 2); factory pre-lubricated. Relubricate every 400–600 operating hours via stud side lubrication hole; fill to 50% of internal void volume.

• Cleanliness: Maintain sealed housing integrity; filter incoming lubrication; avoid dust, moisture, and metal particle ingress.

• Inspection: Monthly vibration and temperature monitoring; semi-annual visual inspection for seal damage, wear, or lubricant leakage.

• Abnormalities: Immediate shutdown for unusual noise, overheating (>190°F/88°C), or excessive radial play.

7. Installation Guidelines

• Prep: Clean shaft/housing bores; verify dimensional accuracy; inspect for seal or thread damage.

• Mounting: Use hex socket for controlled tightening; press-fit stud; avoid impact loading on roller assembly.

• Alignment: Max misalignment ≤ 0.5°; ensure concentricity with cam/track surface.

• Torque: Fastening torque: 75–85 ft-lbs (102–115 N·m) for 7/8-14 thread.

• Post-Install: Rotate manually to confirm smooth operation; run for 1 hour and check operating temperature (<175°F/79°C).

• Safety: Wear PPE; secure workpiece; use proper mounting tools to prevent stud bending.

McGill CHF2SB stands as the definitive heavy-duty cam follower bearing for industrial linear motion systems, combining McGill's CAMROL® engineering excellence, full complement needle design, and LUBRI-DISC® sealing to deliver unmatched reliability, load capacity, and service life in the most demanding production environments.
