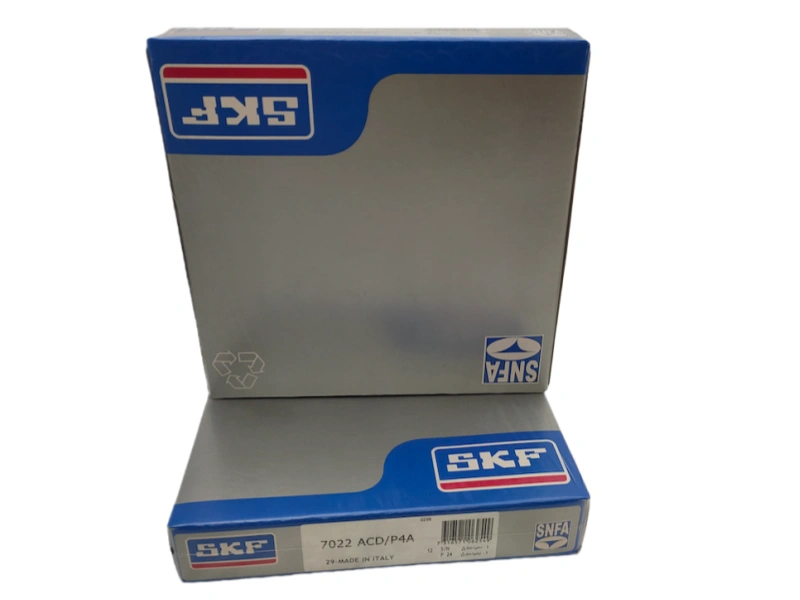

SKF 7022ACD/P4A is a precision single-row angular contact ball bearing with metric dimensions: 110mm bore, 170mm outer diameter, 28mm width, and a 25° contact angle.
Industry Expertise
Global Reach
OEM/ODM Services
Product Introduction
Detailed Parameters
Message Us
SKF 7022ACD/P4A is a precision single-row angular contact ball bearing with metric dimensions: 110mm bore, 170mm outer diameter, 28mm width, and a 25° contact angle. Its balls and raceways are made of premium vacuum-degassed chrome bearing steel (100Cr6), ensuring exceptional hardness, fatigue resistance and dimensional stability; the cage is machined brass for high-speed roller guidance and heat dissipation. Rated with P4 precision class, it has a dynamic load rating of 128kN, static load rating of 112kN, and a limiting speed of 6000r/min. Ideal for CNC machine tool spindles, precision gearboxes, robotics, and high-speed grinding equipment, it handles combined radial-axial loads in high-precision, high-speed industrial applications requiring minimal runout.
| BRAND | FONKIN/SKF/FAG/INA/NSK/NTN/TIMKEN/SNR/IKO/KOYO/ASAHI/FYH/THK/HIWIN/PMI |
| BEARINGS NO. | 7022ACD/P4A SKF |
| TYPE | Angular Contact Ball Bearings |
| Inner(d)mm | 110 |
| Outer(D)mm | 170 |
| Width(B)mm | 84 |
| WEIGHT/KG | 5.85 |
| EAN CODE | 731657 7304728 |
