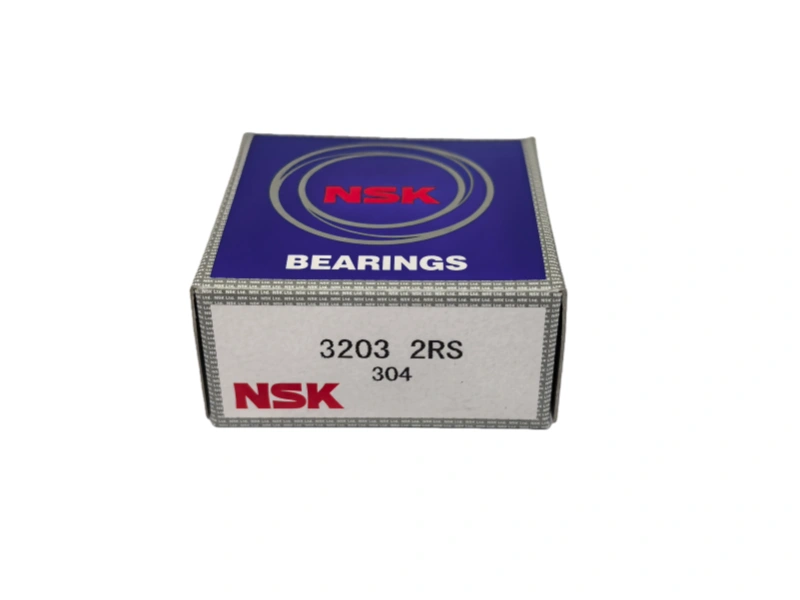

NSK 3203-2RS is a double-row angular contact ball bearing with a 17mm bore, 40mm outer diameter and 17.5mm width, designed for compact installation spaces.Crafted from high-carbon chromium bearing steel, it features precision-ground raceways and double rubber seals (2RS) that retain pre-filled grease and block dust, eliminating the need for frequent re-lubrication. The bearing withstands combined radial and bidirectional axial loads, delivering low-noise, stable rotation at medium speeds.It is widely used in electric motors, small gearboxes, textile machinery, office equipment and household appliances, suiting light-to-medium load working conditions.
| BRAND | FONKIN/SKF/FAG/INA/NSK/NTN/TIMKEN/SNR/IKO/KOYO/ASAHI/FYH/THK/HIWIN/PMI |
| BEARINGS NO. | 3203-2RS-NSK |
| TYPE | Angular Contact Ball Bearings |
| Inner(d)mm | 17 |
| Outer(D)mm | 40 |
| Width(B)mm | 17.5 |
| WEIGHT/KG | 0.1 |
| EAN CODE |
