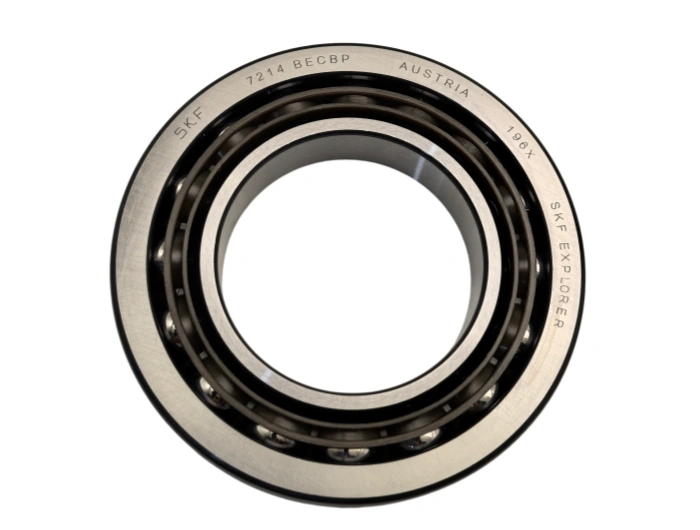

Angular Contact Ball Bearing 7214BECBP SKF

The 7214BECBP SKF is a high‑precision single‑row angular contact ball bearing with a 40° contact angle, engineered for combined radial and axial loads in high‑speed precision equipment. Featuring a glass‑fiber reinforced polyamide cage and optimized internal geometry, it delivers high rigidity, low noise and stable bidirectional load‑bearing capacity for demanding industrial rotating systems.

Industry Expertise
Global Reach
OEM/ODM Services

Get a Free Quote +86-510-6831-3099 fonkin-industries@188.com 8618751551686

Product Introduction
Detailed Parameters
Message Us

The 7214BECBP SKF is a high‑precision single‑row angular contact ball bearing with a 40° contact angle, engineered for combined radial and axial loads in high‑speed precision equipment. Featuring a glass‑fiber reinforced polyamide cage and optimized internal geometry, it delivers high rigidity, low noise and stable bidirectional load‑bearing capacity for demanding industrial rotating systems.
Dimensional parameters follow ISO 355 standards: inner diameter 70 mm, outer diameter 125 mm, width 24 mm, chamfer 1.1×45°, tolerance class P0, standard radial clearance CN. The 40° contact angle provides superior axial load capacity compared to smaller‑angle variants, ideal for heavy thrust‑loaded applications.
Inner rings, outer rings and precision steel balls are manufactured from high‑purity 100Cr6 vacuum‑refined bearing steel, quenched to HRC 61–63, offering outstanding wear resistance, contact fatigue strength and dimensional stability. The BP polyamide cage is lightweight, heat‑resistant and low‑friction, ensuring stable ball guidance under continuous high‑speed operation.
Core manufacturing processes include precision forging, high‑accuracy CNC turning, vacuum quenching and tempering, raceway grinding and superfinishing. Optimized forging improves metal fiber continuity; heat treatment eliminates residual stress; superfinishing achieves ultra‑fine surface finish to minimize friction and vibration.
Calculated under ISO 281 standard, the 7214BECBP SKF reaches a rated L10 service life of 63 000 hours with standard combined loads, steady speed and proper lubrication. Service life is mainly influenced by load ratio, operating speed, alignment precision, lubrication quality and working temperature.
This angular contact bearing is widely used in high‑speed machine tool spindles, wind turbine gearboxes, automotive transmission systems, precision compressors and industrial pumps. Its high contact angle and rigid structure support heavy axial loads and high‑precision positioning.
For daily maintenance, re‑lubricate every 280 operating hours with high‑speed lithium‑based grease at 1.2–1.6 g filling volume. Keep surfaces free of dust and moisture; regularly check running noise, temperature and preload status, replacing components upon abnormal wear.
Before installation, clean mating shafts and housings and confirm H7/h6 tolerances. Apply press‑fit assembly without hammer impact, control coaxiality within 0.02 mm/m and follow standard preload torque. Conduct no‑load trial run after assembly to verify smooth rotation and stable preload performance.

BRAND	FONKIN/SKF/FAG/INA/NSK/NTN/TIMKEN/SNR/IKO/KOYO/ASAHI/FYH/THK/HIWIN/PMI
BEARINGS NO.	7214BECBP SKF
TYPE	Angular Contact Ball Bearings
Inner(d)mm	70
Outer(D)mm	125
Width(B)mm	24
WEIGHT/KG	1.092
EAN CODE	7316576 633539
